Description
Brand - DODGE
Item Number - DODGE - F2B-SLX-35M
Category - Eccentric Collar Ball Bearings (SLX Light Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - F2B-SLX-35M
Weight (kg) - 0.69

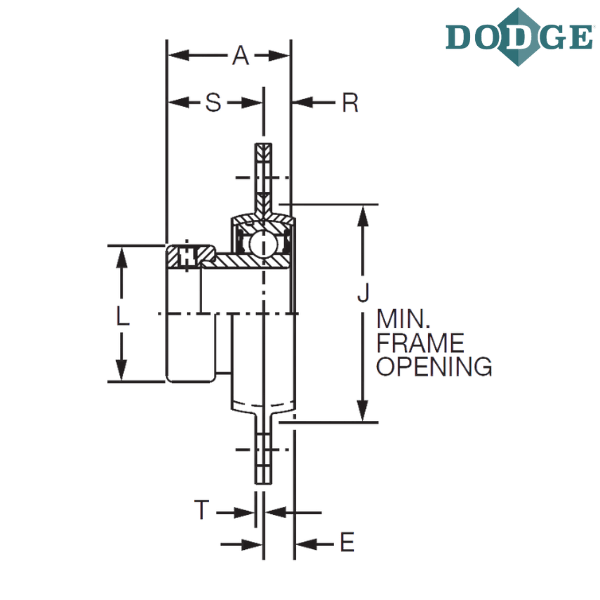

Length Through Bore (A) mm - 38.9

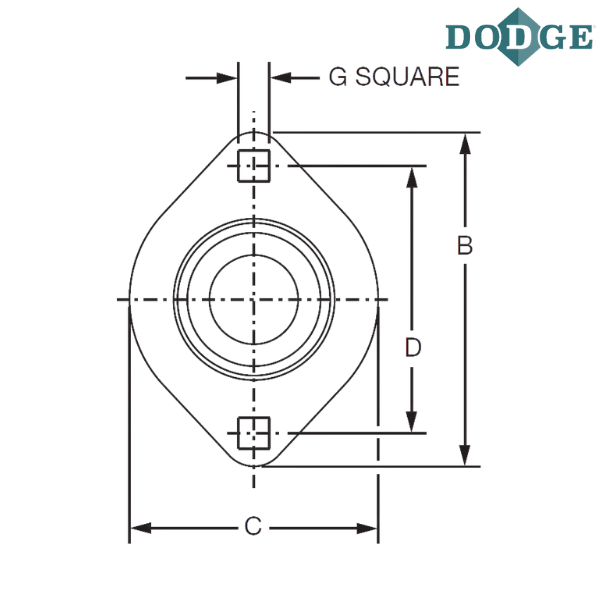

Overall Length (B) mm - 125.5
Overall Width (C) mm - 93.7
Bolt Center to Center Length (D) mm - 100.1
E (mm) - 11.2
G* (mm) - 10.4
J (mm) - 81
L (mm) - 54.1
R (mm) - 9.4
S (mm) - 29.5
T (mm) - 2.5
Housing Radial Load Rating (lbs) - 6225
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SLX - Narrow inner ring, light duty, stamped steel housing, eccentric locking collar
M - Metric
* Mounting bolt holes will accept either carriage or machine bolts.

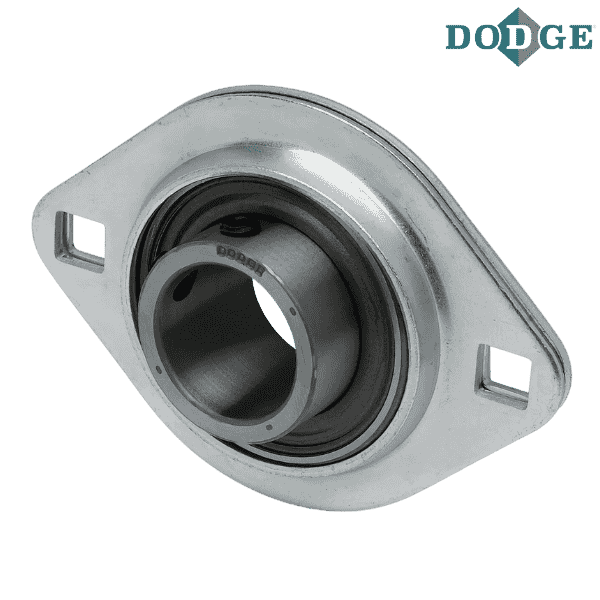

** Images are for representation purposes only
