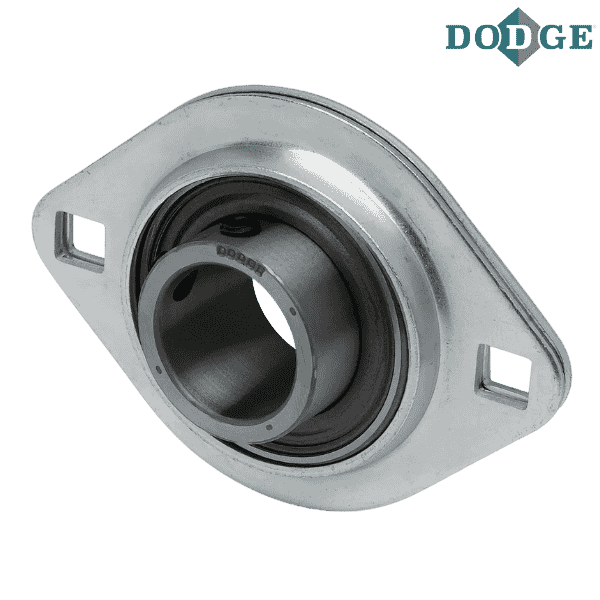

DODGE - F2B-SLX-30M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - F2B-SLX-30M
Category - Eccentric Collar Ball Bearings (SLX Light Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - F2B-SLX-30M
Weight (kg) - 0.52

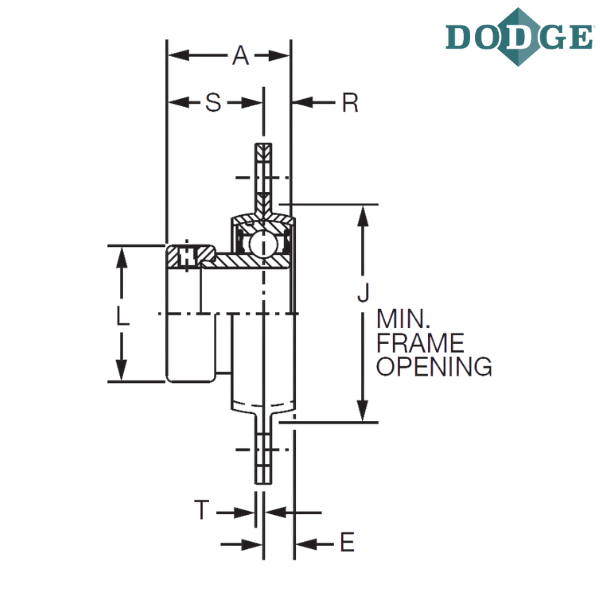

Length Through Bore (A) mm - 35.8

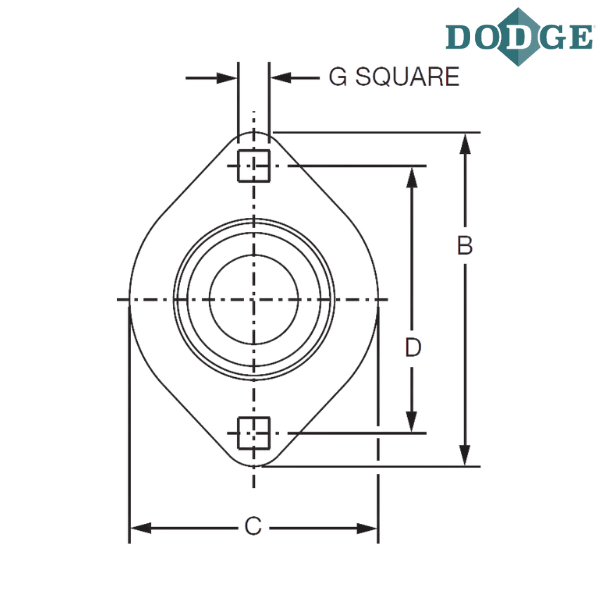

Overall Length (B) mm - 112.8
Overall Width (C) mm - 84.1
Bolt Center to Center Length (D) mm - 90.4
E (mm) - 8.6
G* (mm) - 10.4
J (mm) - 71.4
L (mm) - 44.5
R (mm) - 8.9
S (mm) - 26.7
T (mm) - 2.5
Housing Radial Load Rating (lbs) - 4891
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SLX - Narrow inner ring, light duty, stamped steel housing, eccentric locking collar
M - Metric

* Mounting bolt holes will accept either carriage or machine bolts.

** Images are for representation purposes only
