DODGE - F2B-SLX-20M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - F2B-SLX-20M
Category - Eccentric Collar Ball Bearings (SLX Light Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2B-SLX-20M
Weight (kg) - 0.23

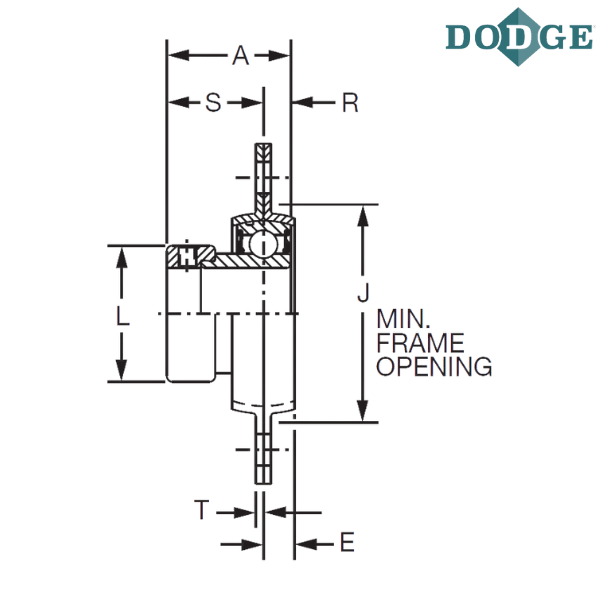

Length Through Bore (A) mm - 31

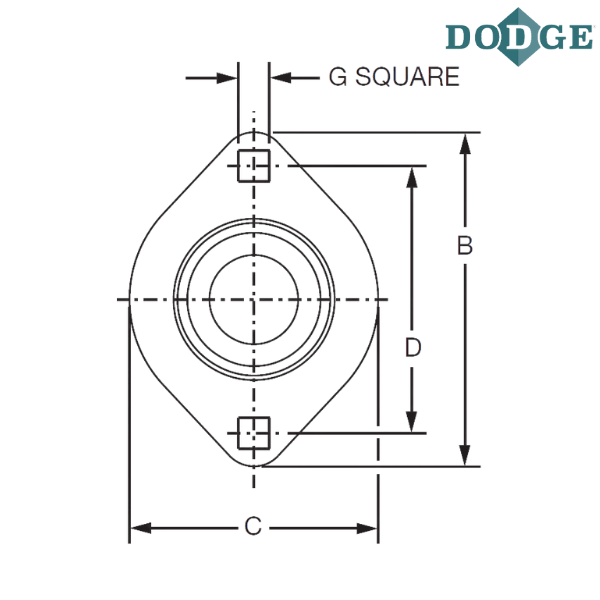

Overall Length (B) mm - 90.4
Overall Width (C) mm - 66.8
Bolt Center to Center Length (D) mm - 71.4
E (mm) - 7.9
G* (mm) - 8.6
J (mm) - 55.6
L (mm) - 33.3
R (mm) - 7.6
S (mm) - 23.4
T (mm) - 2
Housing Radial Load Rating (lbs) - 3112
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SLX - Narrow inner ring, light duty, stamped steel housing, eccentric locking collar
M - Metric

* Mounting bolt holes will accept either carriage or machine bolts.

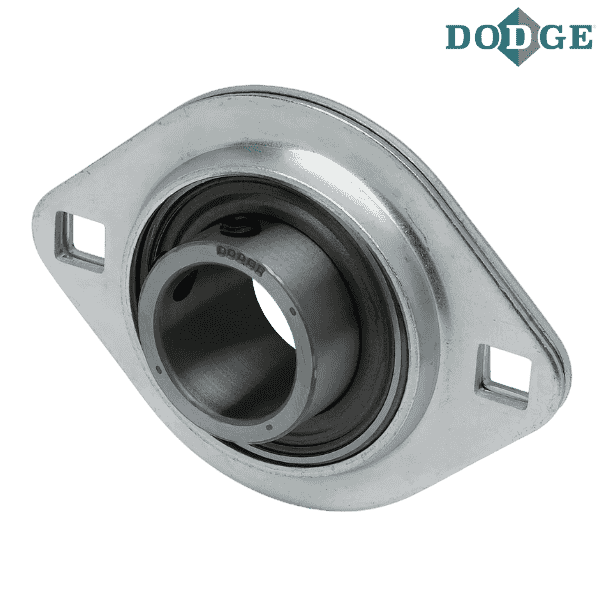

** Images are for representation purposes only
