Description
Brand - DODGE
Item Number - DODGE - F2B-SLX-008
Category - Eccentric Collar Ball Bearings (SLX Light Duty 2-Bolt Flange Bearings)
Series - 203
Shaft Size (inch) - 0.5
Description - F2B-SLX-008
Weight (lbs) - 0.51

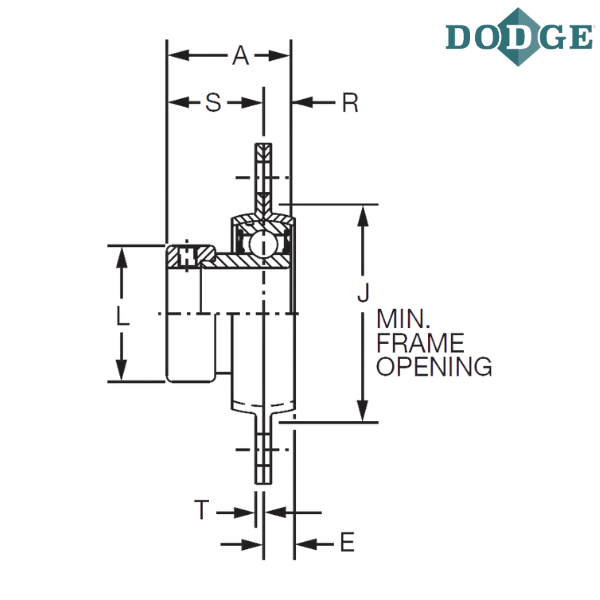

Length Through Bore (A) inch - 1.13

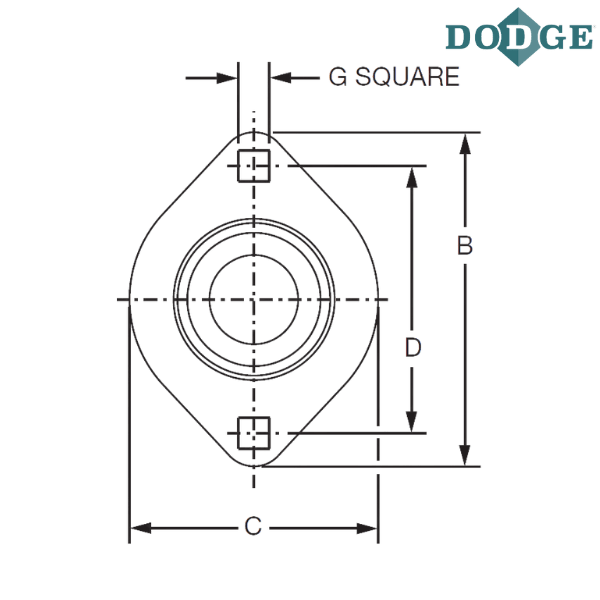

Overall Length (B) inch - 3.19
Overall Width (C) inch - 2.31
Bolt Center to Center Length (D) inch - 2.54
E (inch) - 0.28
G* (inch) - 0.28
J (inch) - 1.94
L (inch) - 1.13
R (inch) - 0.26
S (inch) - 0.87
T (inch) - 0.08
Housing Radial Load Rating (lbs) - 600
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SLX - Narrow inner ring, light duty, stamped steel housing, eccentric locking collar
* Mounting bolt holes will accept either carriage or machine bolts.

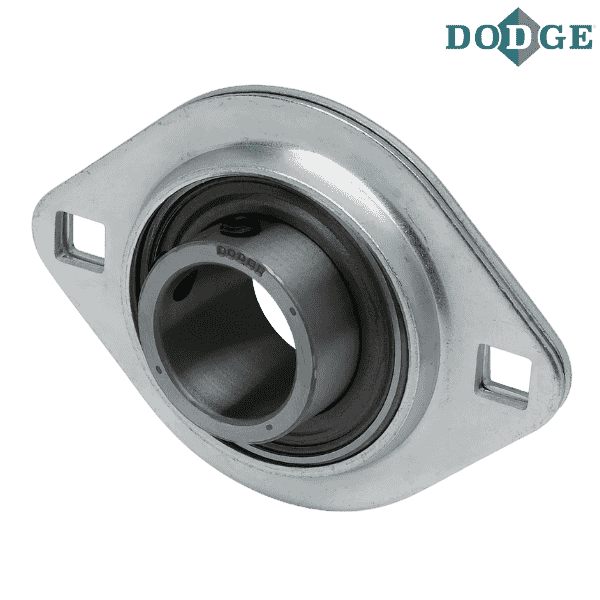

** Images are for representation purposes only
