DODGE - F2B-SCMAH-40M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - F2B-SCMAH-40M
Category - Setscrew Ball Bearings (SCMAH Medium Duty Air Handling 2-Bolt Flange Bearings)
Series - 209
Shaft Size (mm) - 40
Standard Description - F2B-SCMAH-40M
Weight (kg) - 2.3

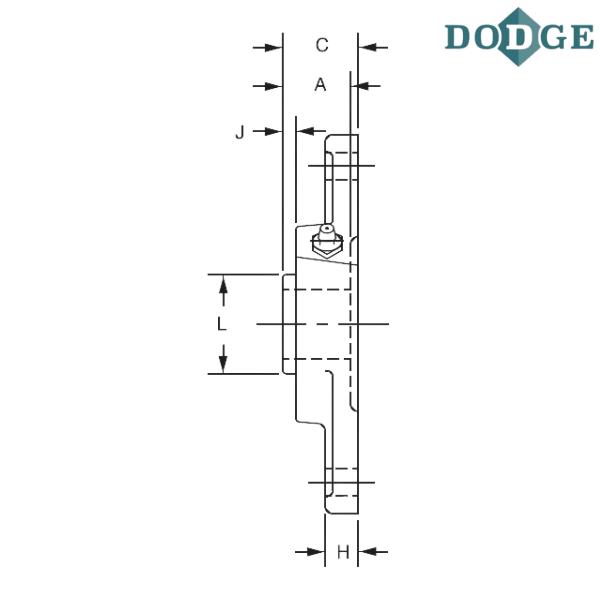

Length Through Bore (A) mm - 49.3

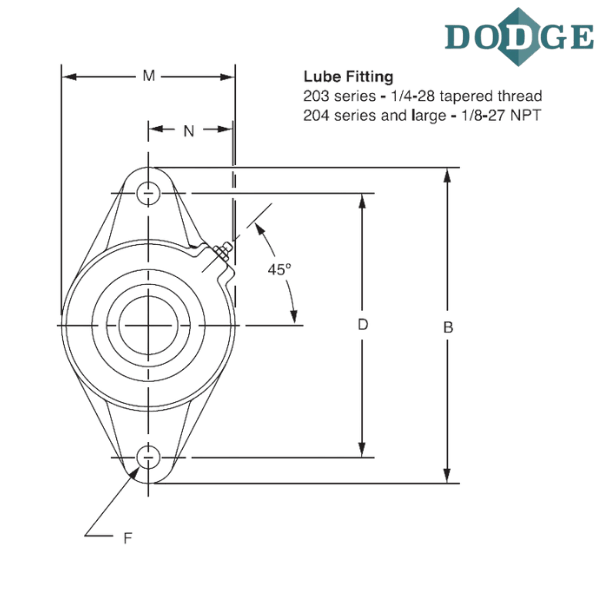

Overall Length (B) mm - 179.3
Thickness (C) mm - 50.5
Bolt Center to Center Length (D) mm - 148.3
F-Bolt Diameter - M14
H (mm) - 16
J (mm) - 15
L (mm) - 56.4
Overall Width (M) mm - 111.3
N (mm) - 48.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SCM - Wide inner ring, medium duty, 65° setscrew locking
AH - Air handling
M - Metric

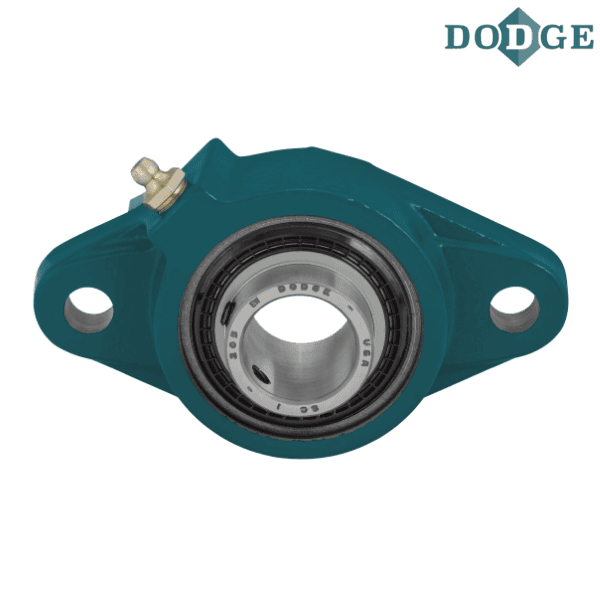

** Images are for representation purposes only
