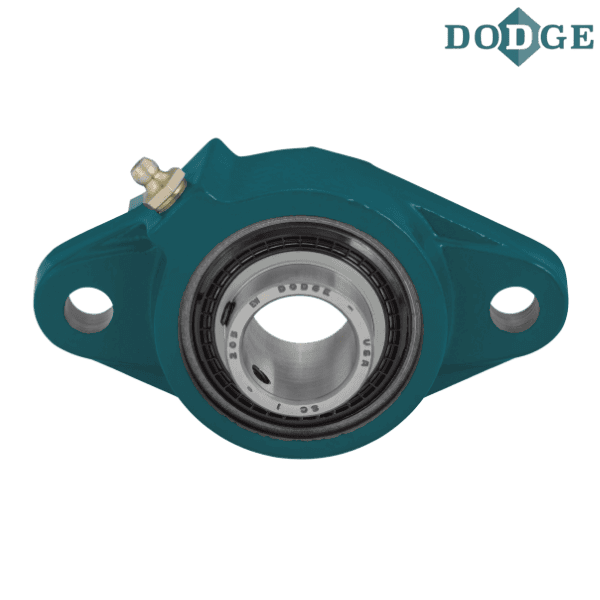

DODGE - F2B-SCM-203-HT


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - F2B-SCM-203-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 212
Description - F2B-SCM-203-HT
Shaft Size (inch) - 2.1875
Weight (lbs) - 7.4

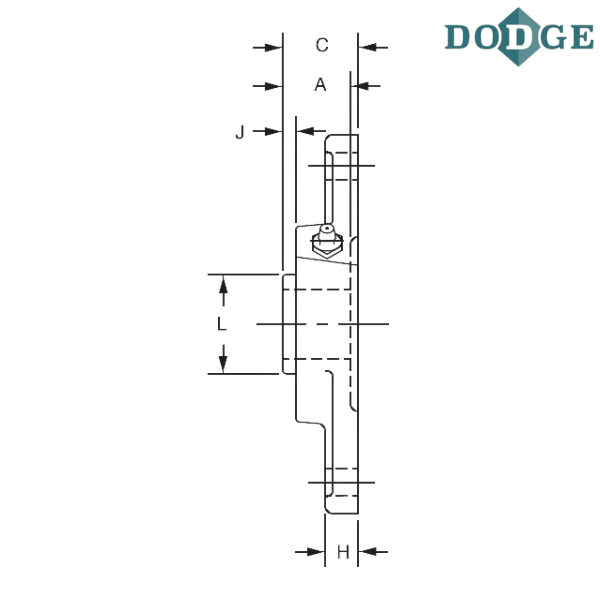

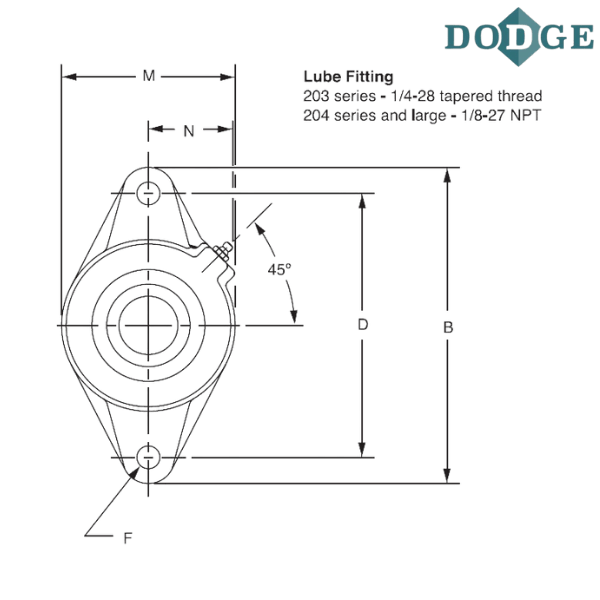

Length Through Bore (A) inch - 2.31
Overall Length (B) inch - 9.81
Thickness (C) inch - 2.38
Bolt Center to Center Length (D) inch - 7.96
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.81
J (inch) - 0.66
L (inch) - 2.97
Overall Width (M) inch - 5.5
N (inch) - 2.47

Notes :
F2B - 2 bolt flange
SCM - Wide inner ring, medium duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flage Bearing
Housing Material - Stainless Steel and polymar Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
