Description
Brand - DODGE
Item Number - DODGE - F2B-SCAH-60M
Category - Setscrew Ball Bearings (SCAH Normal Duty Air Handling 2-Bolt Flange Bearings)
Series - 212
Shaft Size (mm) - 60
Description - F2B-SCAH-60M
Weight (kg) - 3.4

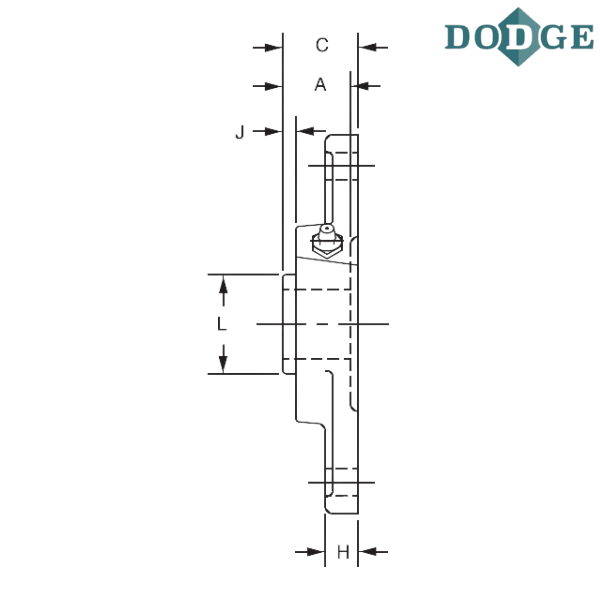

Length Through Bore (A) mm - 58.7

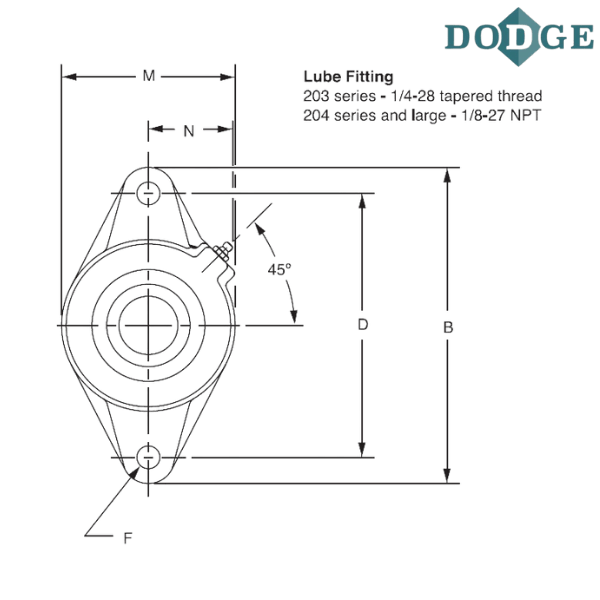

Overall Length (B) mm - 249.2
Thickness (C) mm - 60.5
Bolt Center to Center Length (D) mm - 202.1
F-Bolt Diameter - M22
H (mm) - 20.6
J (mm) - 16.8
L (mm) - 75.4
Overall Width (M) mm - 139.7
N (mm) - 62.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
AH - Air handling
M - Metric

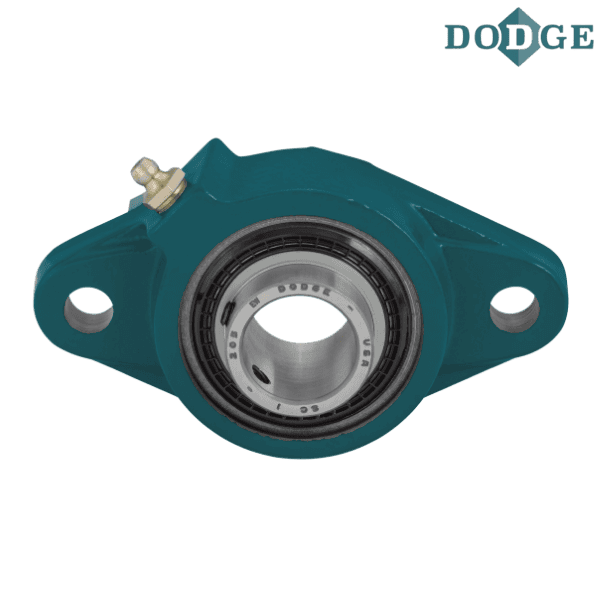

** Images are for representation purposes only
