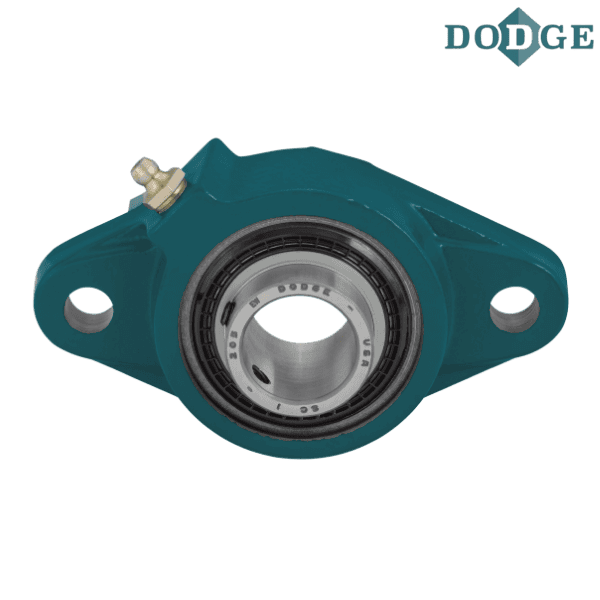

DODGE - F2B-SC-45M-HT

Brand - DODGE
Item Number - DODGE - F2B-SC-45M-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 209
Description - F2B-SC-45M-HT
Shaft Size (mm) - 45
Weight (kg) - 2.2

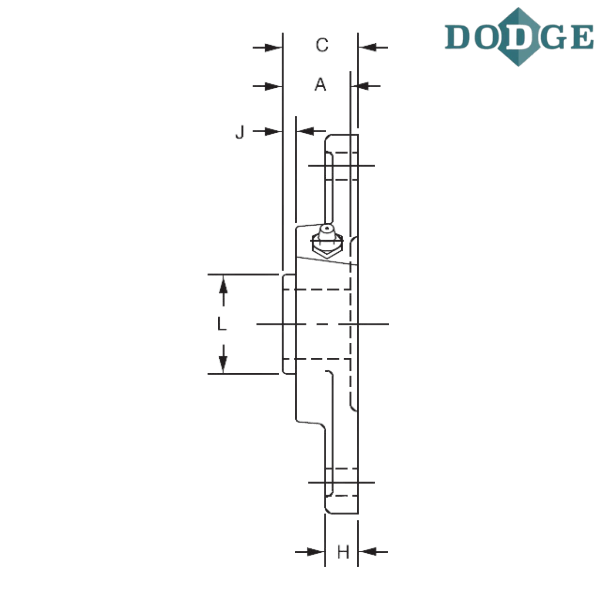

Length Through Bore (A) mm - 49.3

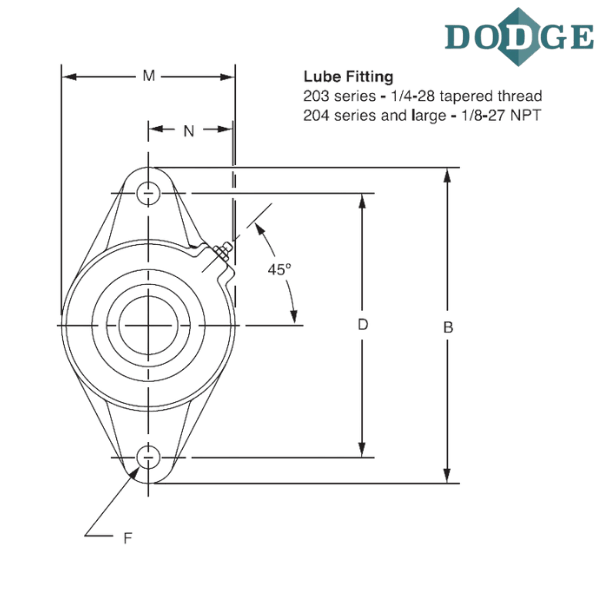

Overall Length (B) mm - 179.3
Thickness (C) mm - 50.5
Bolt Center to Center Length (D) mm - 148.3
F-Bolt Diameter - M14
H (mm) - 16
J (mm) - 15
L (mm) - 56.4
Overall Width (M) mm - 111.3
N (mm) - 48.5

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
