DODGE - F2B-SC-111-HT

Brand - DODGE
Item Number - DODGE - F2B-SC-111-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 209
Description - F2B-SC-111-HT
Shaft Size (inch) - 1.6875
Weight (lbs) - 5

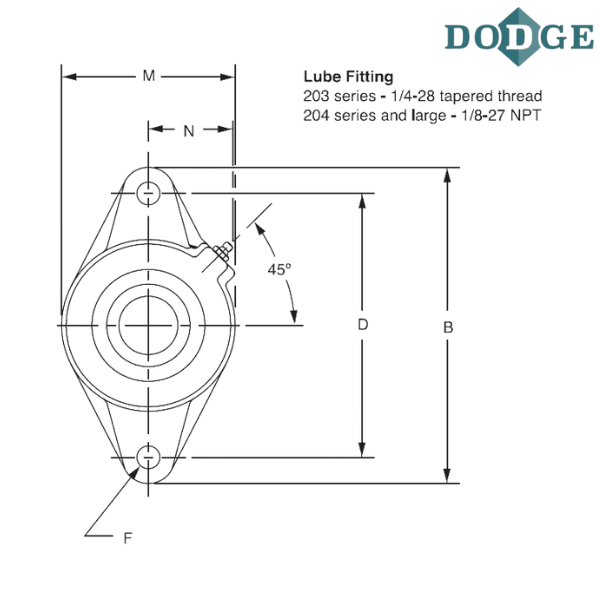

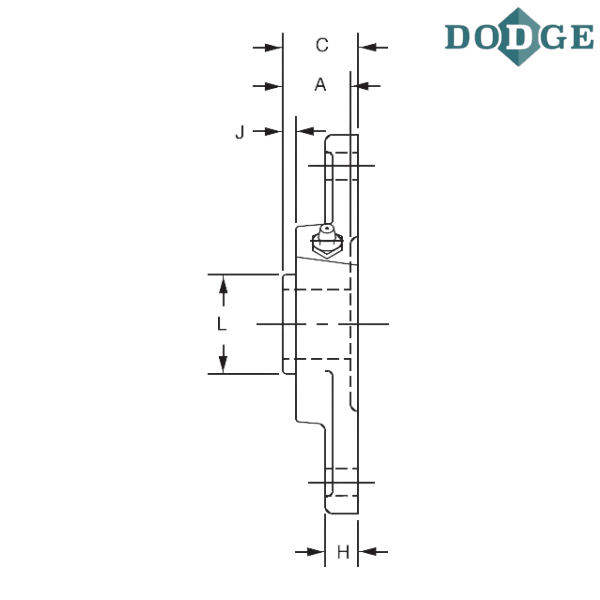

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 7.06
Thickness (C) inch - 1.99
Bolt Center to Center Length (D) inch - 5.84
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.59
L (inch) - 2.22
Overall Width (M) inch - 4.38
N (inch) - 1.91

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

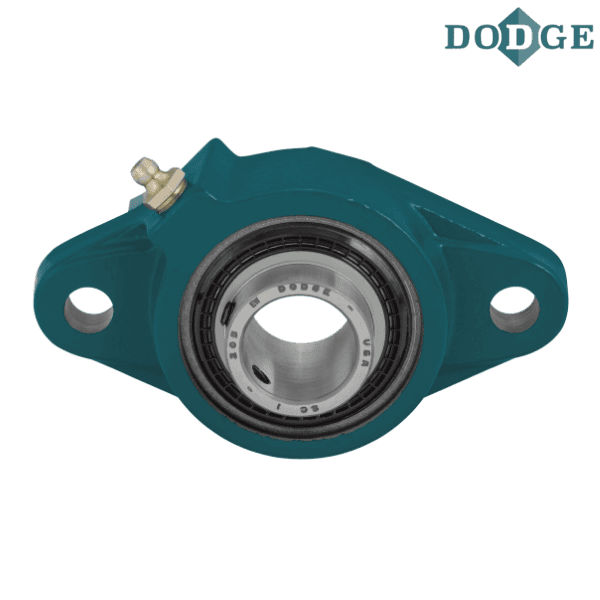

** Images are for representation purposes only
