DLF 6 10 NADELLA

Brand - NADELLA
Item Number - DLF 6 10 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)

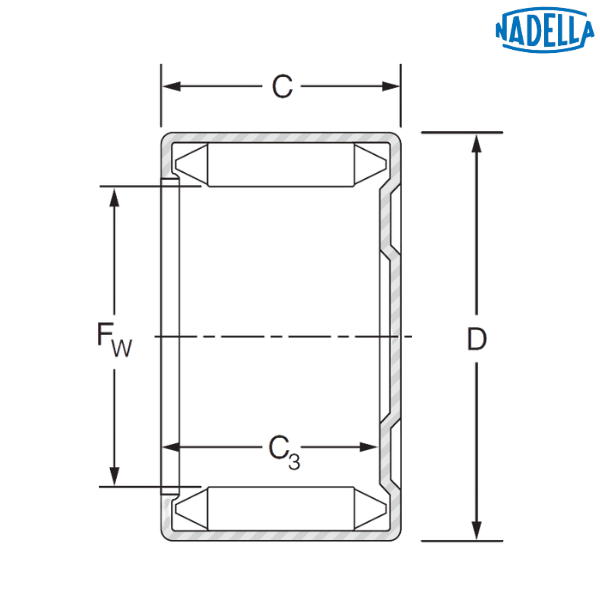

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 6 mm
Diameter of the Inner Raceway (Fw) - 6 mm
Outer Diameter (D) - 12 mm
Width (C) - 10 mm
Minimum Width (C3) - 7.7 mm
Dynamic Load Rating (C) - 2.9 kN
Static Load Rating (C0) - 3.8 kN
Speed Limit with Grease - 33000 rpm
Speed Limit with Oil - 50000 rpm
Weight - 0.004 kg

Description of Prefix :
DLF - Full complement needle bush, closed-end

♦ ♦ Images are for representation purposes only
