Description
Brand - NADELLA
Item Number - DLF 44 16 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)

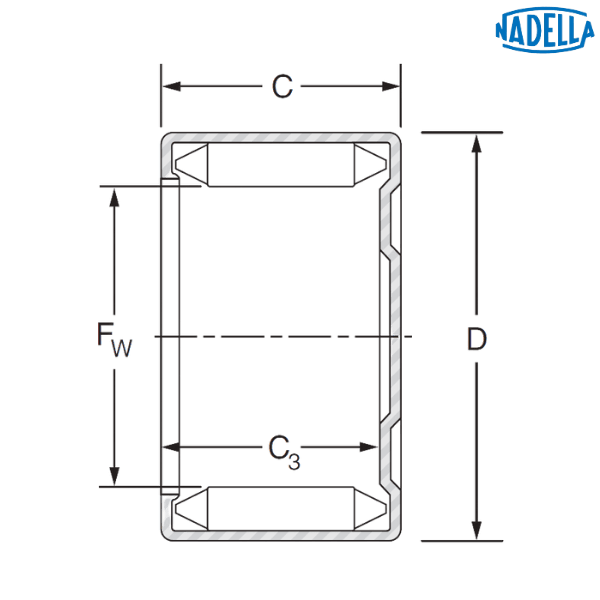

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 44 mm
Diameter of the Inner Raceway (Fw) - 44 mm
Outer Diameter (D) - 52 mm
Width (C) - 16 mm
Minimum Width (C3) - 13.7 mm
Dynamic Load Rating (C) - 23.8 kN
Static Load Rating (C0) - 57 kN
Speed Limit with Grease - 4400 rpm
Speed Limit with Oil - 6800 rpm
Weight - 0.066 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
