Description
Brand - NADELLA
Item Number - DLF 30 16 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR25x30x17

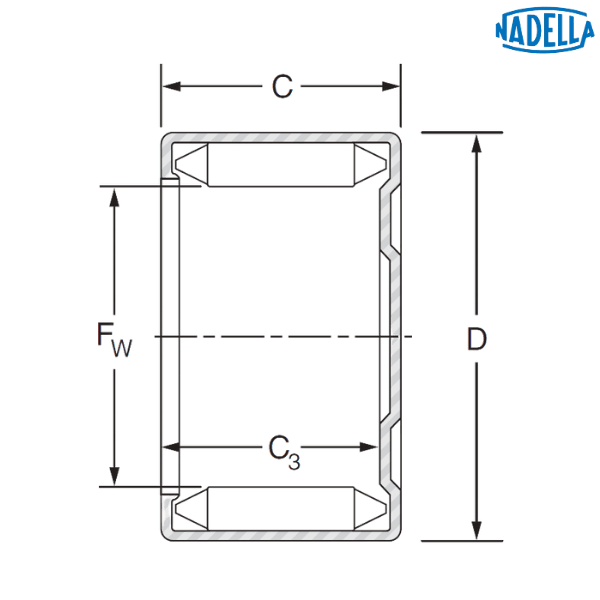

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Diameter of the Inner Raceway (Fw) - 30 mm
Outer Diameter (D) - 38 mm
Width (C) - 16 mm
Minimum Width (C3) - 13.7 mm
Dynamic Load Rating (C) - 21.7 kN
Static Load Rating (C0) - 46.5 kN
Speed Limit with Grease - 6500 rpm
Speed Limit with Oil - 10000 rpm
Weight - 0.045 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
Item Number - DLF 30 16 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR25x30x17
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Diameter of the Inner Raceway (Fw) - 30 mm
Outer Diameter (D) - 38 mm
Width (C) - 16 mm
Minimum Width (C3) - 13.7 mm
Dynamic Load Rating (C) - 21.7 kN
Static Load Rating (C0) - 46.5 kN
Speed Limit with Grease - 6500 rpm
Speed Limit with Oil - 10000 rpm
Weight - 0.045 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
