Description
Brand - NADELLA
Item Number - DLF 28 20 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR22x28x20.5

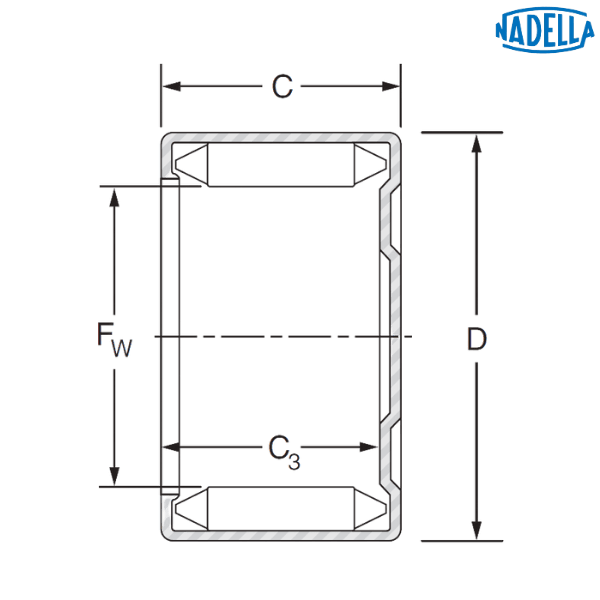

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 28 mm
Diameter of the Inner Raceway (Fw) - 28 mm
Outer Diameter (D) - 36 mm
Width (C) - 20 mm
Minimum Width (C3) - 17.7 mm
Dynamic Load Rating (C) - 24.5 kN
Static Load Rating (C0) - 52 kN
Speed Limit with Grease - 7200 rpm
Speed Limit with Oil - 11000 rpm
Weight - 0.051 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
Item Number - DLF 28 20 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR22x28x20.5
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 28 mm
Diameter of the Inner Raceway (Fw) - 28 mm
Outer Diameter (D) - 36 mm
Width (C) - 20 mm
Minimum Width (C3) - 17.7 mm
Dynamic Load Rating (C) - 24.5 kN
Static Load Rating (C0) - 52 kN
Speed Limit with Grease - 7200 rpm
Speed Limit with Oil - 11000 rpm
Weight - 0.051 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
