Description
Brand - NADELLA
Item Number - DLF 18 12 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR13x18x12.5

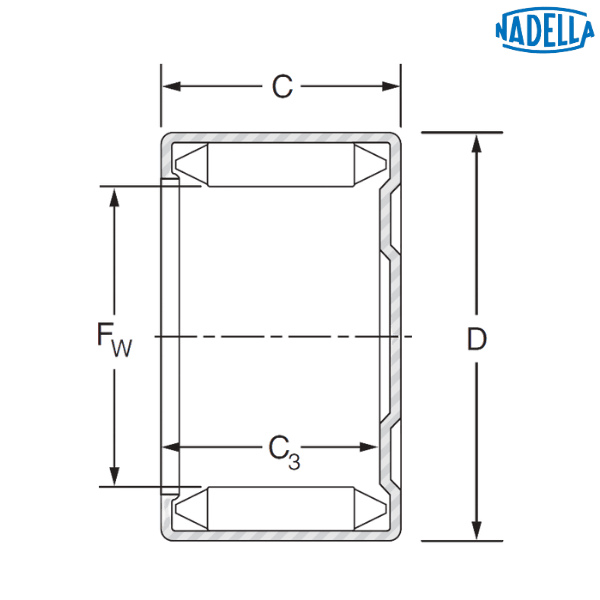

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 18 mm
Diameter of the Inner Raceway (Fw) - 18 mm
Outer Diameter (D) - 24 mm
Width (C) - 12 mm
Minimum Width (C3) - 9.7 mm
Dynamic Load Rating (C) - 10.7 kN
Static Load Rating (C0) - 19.5 kN
Speed Limit with Grease - 11000 rpm
Speed Limit with Oil - 16500 rpm
Weight - 0.016 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
Item Number - DLF 18 12 NADELLA
Category - Full Complement Needle Bushes (Closed End Series DLF)
Compatible Internal Ring - JR13x18x12.5
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 18 mm
Diameter of the Inner Raceway (Fw) - 18 mm
Outer Diameter (D) - 24 mm
Width (C) - 12 mm
Minimum Width (C3) - 9.7 mm
Dynamic Load Rating (C) - 10.7 kN
Static Load Rating (C0) - 19.5 kN
Speed Limit with Grease - 11000 rpm
Speed Limit with Oil - 16500 rpm
Weight - 0.016 kg
Description of Prefix :
DLF - Full complement needle bush, closed-end
♦ ♦ Images are for representation purposes only
