Description
Brand - NADELLA
Item Number - DL 8 10 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)

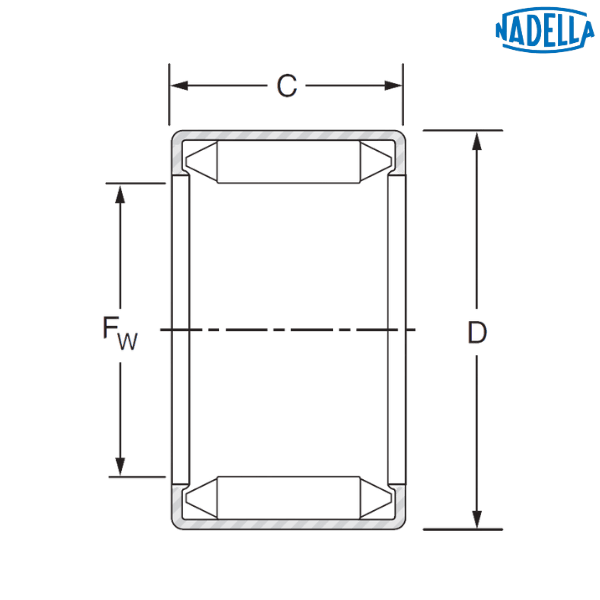

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 8 mm
Diameter of the Inner Raceway (Fw) - 8 mm
Outer Diameter (D) - 14 mm
Width (C) - 10 mm
Dynamic Load Rating (C) - 4.5 kN
Static Load Rating (C0) - 6.5 kN
Speed Limit with Grease - 24000 rpm
Speed Limit with Oil - 37500 rpm
Weight - 0.005 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
Item Number - DL 8 10 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 8 mm
Diameter of the Inner Raceway (Fw) - 8 mm
Outer Diameter (D) - 14 mm
Width (C) - 10 mm
Dynamic Load Rating (C) - 4.5 kN
Static Load Rating (C0) - 6.5 kN
Speed Limit with Grease - 24000 rpm
Speed Limit with Oil - 37500 rpm
Weight - 0.005 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
