DL 50 18 NADELLA

Brand - NADELLA
Item Number - DL 50 18 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)

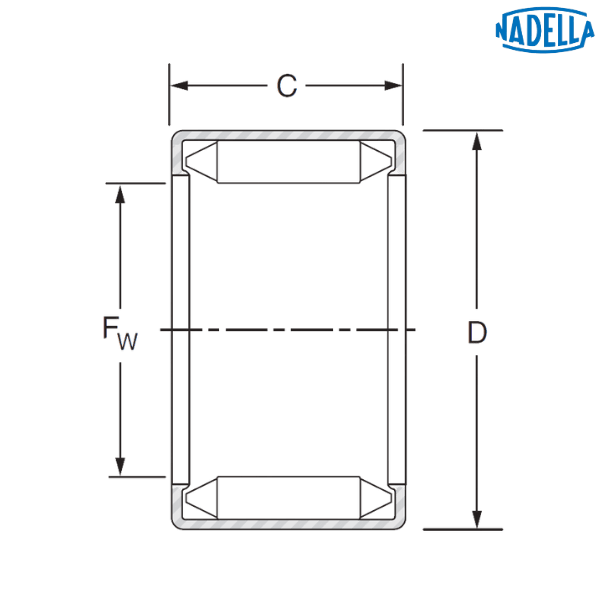

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Diameter of the Inner Raceway (Fw) - 50 mm
Outer Diameter (D) - 58 mm
Width (C) - 18 mm
Dynamic Load Rating (C) - 36.5 kN
Static Load Rating (C0) - 92 kN
Speed Limit with Grease - 3900 rpm
Speed Limit with Oil - 6000 rpm
Weight - 0.071 kg

Description of Prefix :
DL - Full complement needle bush, open

♦ ♦ Images are for representation purposes only
