Description
Brand - NADELLA
Item Number - DL 40 20 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR35x40x20.5

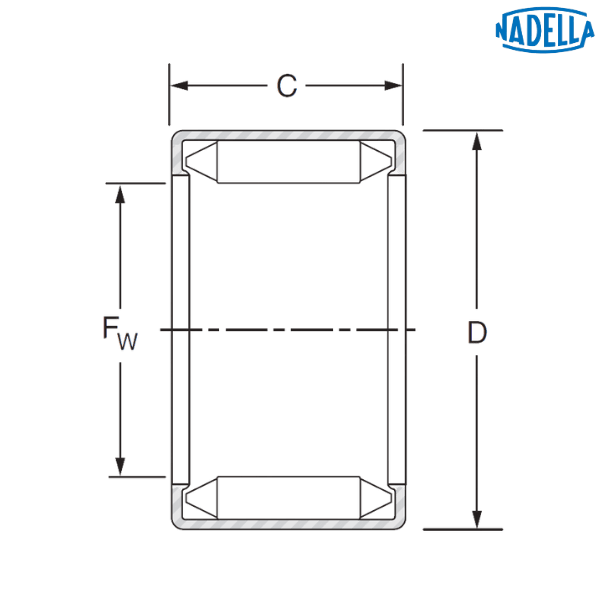

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Diameter of the Inner Raceway (Fw) - 40 mm
Outer Diameter (D) - 48 mm
Width (C) - 20 mm
Dynamic Load Rating (C) - 36 kN
Static Load Rating (C0) - 84 kN
Speed Limit with Grease - 4900 rpm
Speed Limit with Oil - 7500 rpm
Weight - 0.064 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
