Description
Brand - NADELLA
Item Number - DL 30 25 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR25x30x26

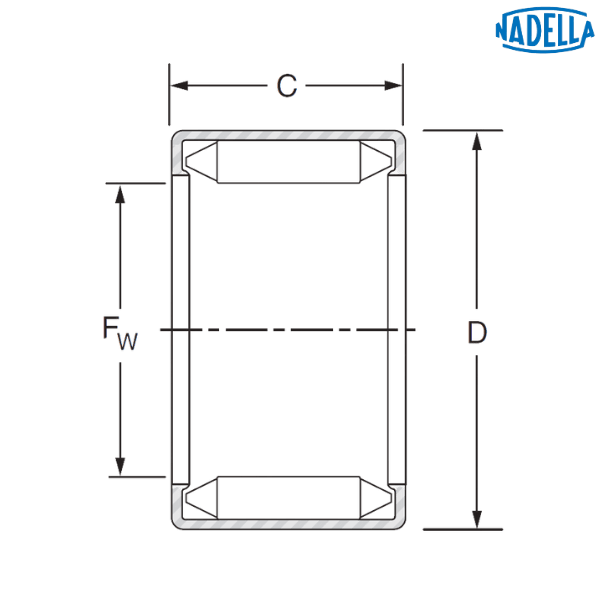

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Diameter of the Inner Raceway (Fw) - 30 mm
Outer Diameter (D) - 38 mm
Width (C) - 25 mm
Dynamic Load Rating (C) - 35.5 kN
Static Load Rating (C0) - 76 kN
Speed Limit with Grease - 6500 rpm
Speed Limit with Oil - 10000 rpm
Weight - 0.063 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
Item Number - DL 30 25 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR25x30x26
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Diameter of the Inner Raceway (Fw) - 30 mm
Outer Diameter (D) - 38 mm
Width (C) - 25 mm
Dynamic Load Rating (C) - 35.5 kN
Static Load Rating (C0) - 76 kN
Speed Limit with Grease - 6500 rpm
Speed Limit with Oil - 10000 rpm
Weight - 0.063 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
