DL 25 16 NADELLA

Brand - NADELLA
Item Number - DL 25 16 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR20x25x17

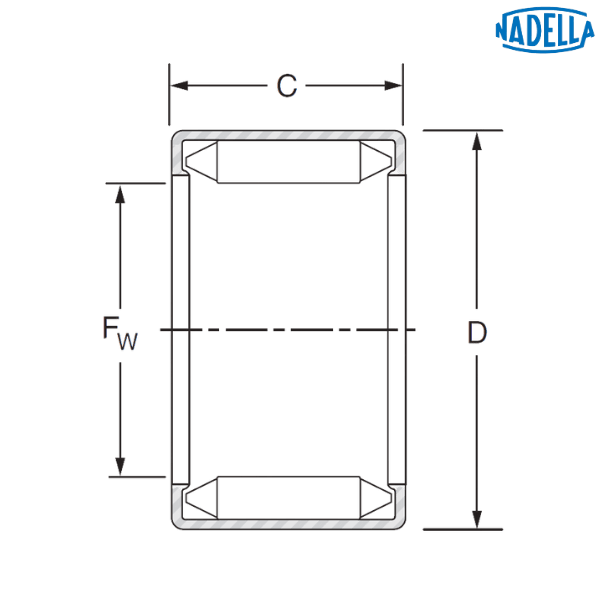

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Diameter of the Inner Raceway (Fw) - 25 mm
Outer Diameter (D) - 33 mm
Width (C) - 16 mm
Dynamic Load Rating (C) - 16 kN
Static Load Rating (C0) - 32.5 kN
Speed Limit with Grease - 7800 rpm
Speed Limit with Oil - 12000 rpm
Weight - 0.035 kg

Description of Prefix :
DL - Full complement needle bush, open
