DL 22 16 NADELLA

Brand - NADELLA
Item Number - DL 22 16 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR17x22x16

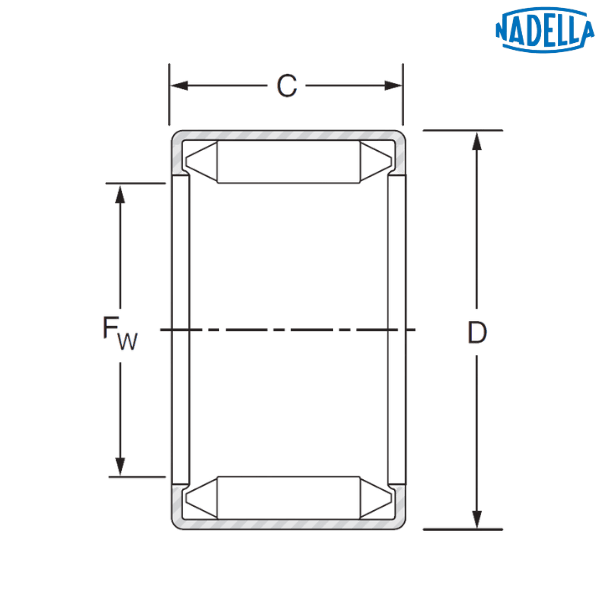

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 22 mm
Diameter of the Inner Raceway (Fw) - 22 mm
Outer Diameter (D) - 28 mm
Width (C) - 16 mm
Dynamic Load Rating (C) - 17 kN
Static Load Rating (C0) - 33 kN
Speed Limit with Grease - 8800 rpm
Speed Limit with Oil - 13500 rpm
Weight - 0.022 kg

Description of Prefix :
DL - Full complement needle bush, open
