DL 20 16 NADELLA

Brand - NADELLA
Item Number - DL 20 16 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR17x20x16

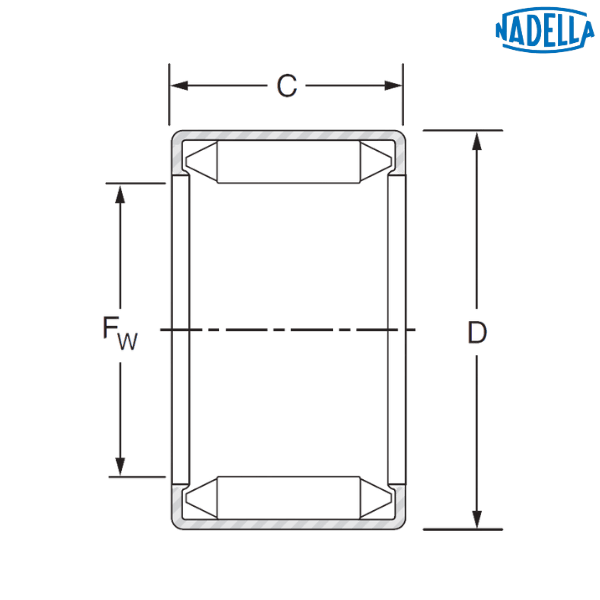

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Diameter of the Inner Raceway (Fw) - 20 mm
Outer Diameter (D) - 26 mm
Width (C) - 16 mm
Dynamic Load Rating (C) - 16 kN
Static Load Rating (C0) - 30.5 kN
Speed Limit with Grease - 10000 rpm
Speed Limit with Oil - 15000 rpm
Weight - 0.02 kg

Description of Prefix :
DL - Full complement needle bush, open

♦ ♦ Images are for representation purposes only
