Description
Brand - NADELLA
Item Number - DL 20 12 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR15x20x12

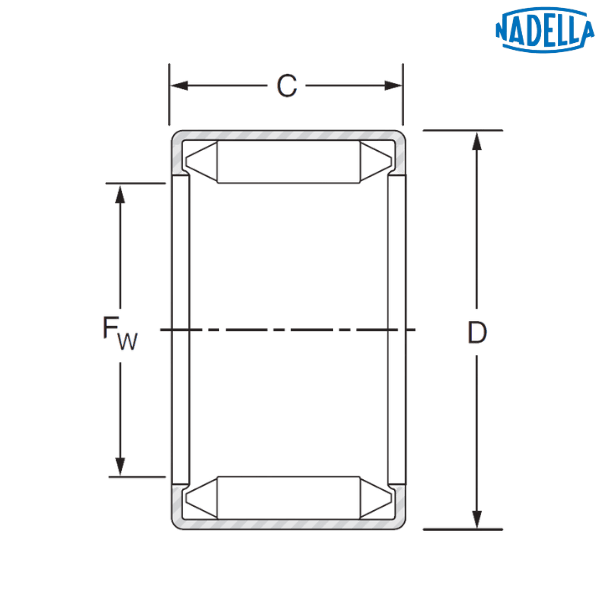

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Diameter of the Inner Raceway (Fw) - 20 mm
Outer Diameter (D) - 26 mm
Width (C) - 12 mm
Dynamic Load Rating (C) - 10.2 kN
Static Load Rating (C0) - 19.5 kN
Speed Limit with Grease - 10000 rpm
Speed Limit with Oil - 15000 rpm
Weight - 0.015 kg
Description of Prefix :
DL - Full complement needle bush, open
♦ ♦ Images are for representation purposes only
