DL 17 12 NADELLA

Brand - NADELLA
Item Number - DL 17 12 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR13x17x12.5

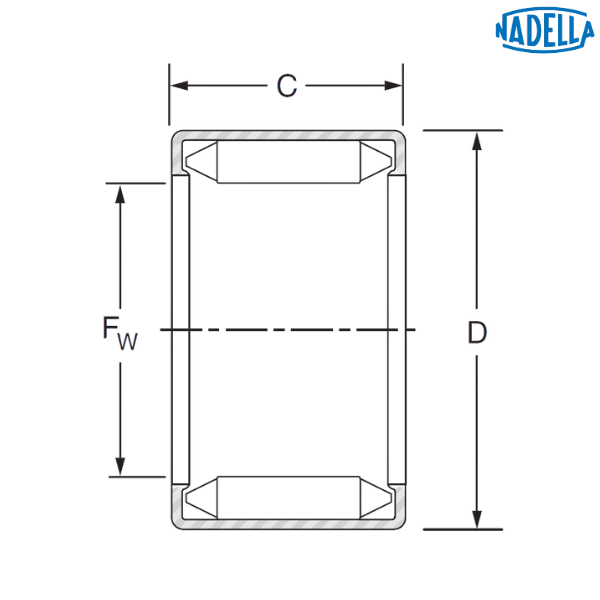

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 17 mm
Diameter of the Inner Raceway (Fw) - 17 mm
Outer Diameter (D) - 23 mm
Width (C) - 12 mm
Dynamic Load Rating (C) - 9 kN
Static Load Rating (C0) - 16.2 kN
Speed Limit with Grease - 11000 rpm
Speed Limit with Oil - 17500 rpm
Weight - 0.013 kg

Description of Prefix :
DL - Full complement needle bush, open

♦ ♦ Images are for representation purposes only
