DL 15 12 NADELLA

Brand - NADELLA
Item Number - DL 15 12 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR12x15x12.5

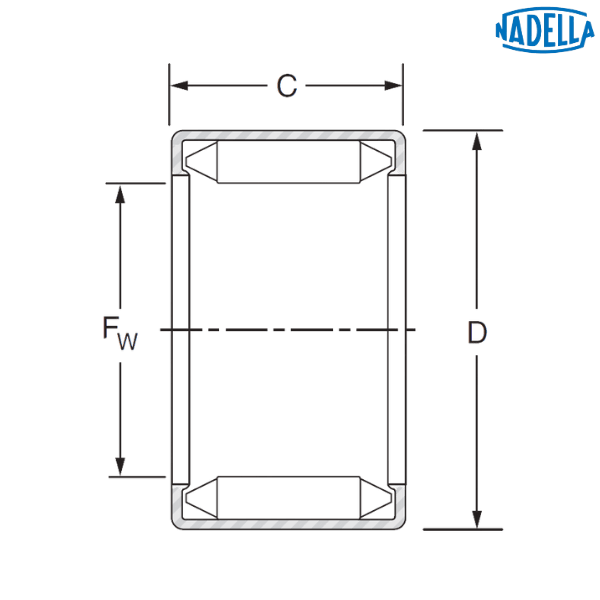

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Diameter of the Inner Raceway (Fw) - 15 mm
Outer Diameter (D) - 21 mm
Width (C) - 12 mm
Dynamic Load Rating (C) - 9.4 kN
Static Load Rating (C0) - 16.4 kN
Speed Limit with Grease - 13000 rpm
Speed Limit with Oil - 20000 rpm
Weight - 0.011 kg

Description of Prefix :
DL - Full complement needle bush, open

♦ ♦ Images are for representation purposes only
