DL 14 12 NADELLA

Brand - NADELLA
Item Number - DL 14 12 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR10x14x12.5

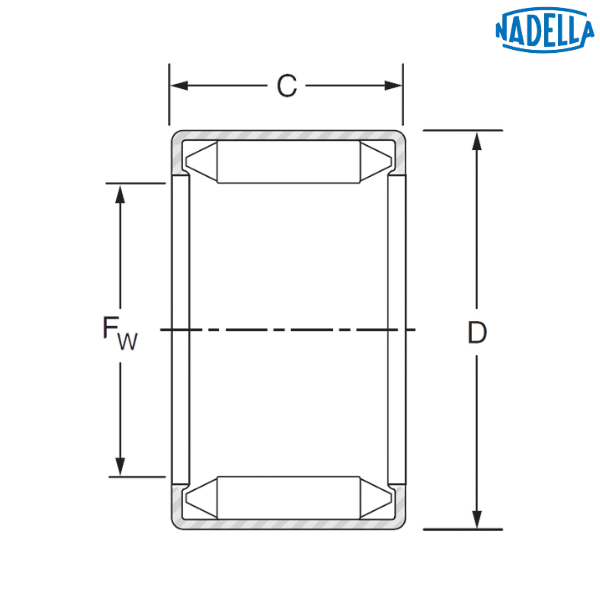

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 14 mm
Diameter of the Inner Raceway (Fw) - 14 mm
Outer Diameter (D) - 20 mm
Width (C) - 12 mm
Dynamic Load Rating (C) - 7.9 kN
Static Load Rating (C0) - 13.5 kN
Speed Limit with Grease - 14000 rpm
Speed Limit with Oil - 21500 rpm
Weight - 0.011 kg

Description of Prefix :
DL - Full complement needle bush, open
