DL 13 12 NADELLA

Brand - NADELLA
Item Number - DL 13 12 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR10x13x2.5

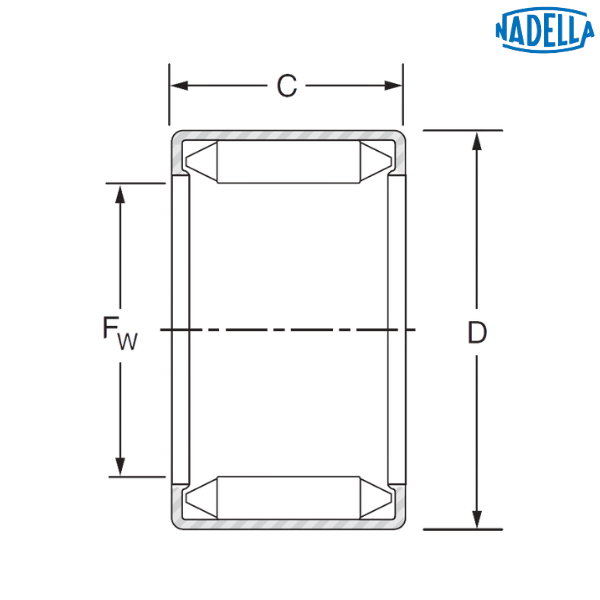

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 13 mm
Diameter of the Inner Raceway (Fw) - 13 mm
Outer Diameter (D) - 19 mm
Width (C) - 12 mm
Dynamic Load Rating (C) - 8.5 kN
Static Load Rating (C0) - 14.2 kN
Speed Limit with Grease - 15000 rpm
Speed Limit with Oil - 23000 rpm
Weight - 0.01 kg

Description of Prefix :
DL - Full complement needle bush, open

♦ ♦ Images are for representation purposes only
