DL 12 10 NADELLA

Brand - NADELLA
Item Number - DL 12 10 NADELLA
Category - Full Complement Needle Bushes (Open Series DL)
Compatible Internal Ring - JR8x12x10.5

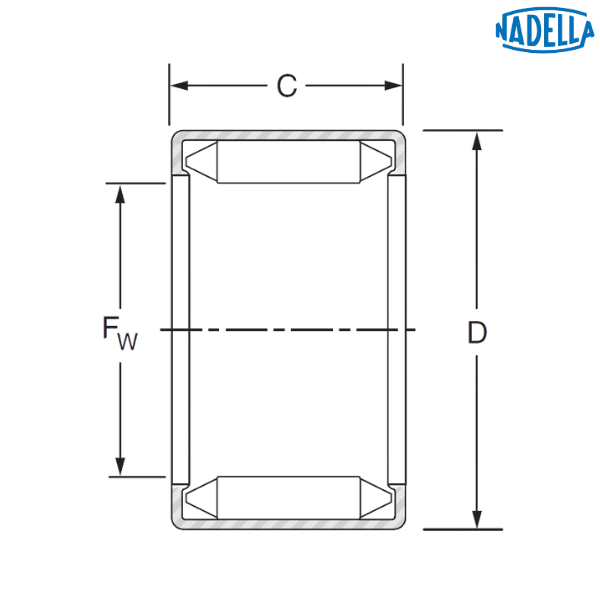

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 12 mm
Diameter of the Inner Raceway (Fw) - 12 mm
Outer Diameter (D) - 18 mm
Width (C) - 10 mm
Dynamic Load Rating (C) - 6 kN
Static Load Rating (C0) - 9.7 kN
Speed Limit with Grease - 16000 rpm
Speed Limit with Oil - 25000 rpm
Weight - 0.008 kg

Description of Prefix :
DL - Full complement needle bush, open

♦ ♦ Images are for representation purposes only
