Description
Brand - NADELLA
Item Number - DIST FS 35 NADELLA
Category - Spacers for FS and FSH Series

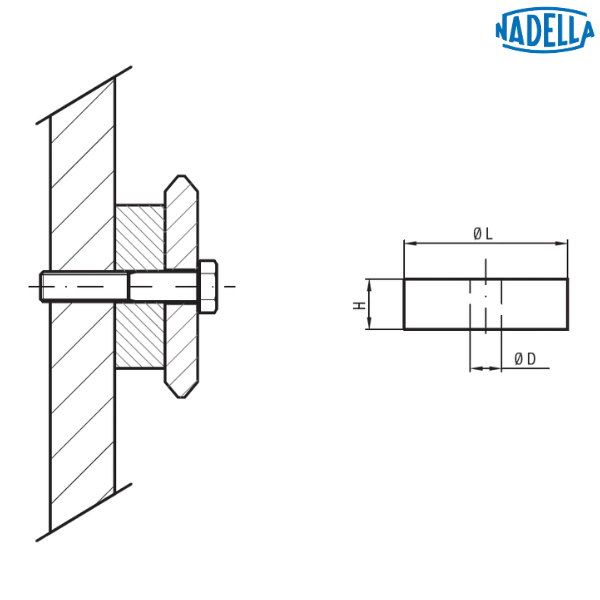

Principal Dimensions & Load Ratings (Metric):
Dimension (Ø L) - 35 mm
Dimension (Ø D) - 8.5 mm
Dimension (H) - 15 mm
Suggested Combinations - FS 35, FSR 35
Description of Prefix:
DIST FS - Spacers for rails FS, FSH and FSR
Other salient points to be noted:
• The spacers, mounted between the guide and the supporting structure, guarantee adequate distance for the sliding of the rollers
• The spacers DIST are designed for guides FS and FSH of V-Line and guides FSR of Multi-Motion-Line
• Delivery without screws
Finishing:
• Anodized Aluminium
Optional Features:
• Steel
♦ ♦ Images are for representation purposes only
