DC 10.54 D NADELLA

Brand - NADELLA
Item Number - DC 10.54 D* NADELLA

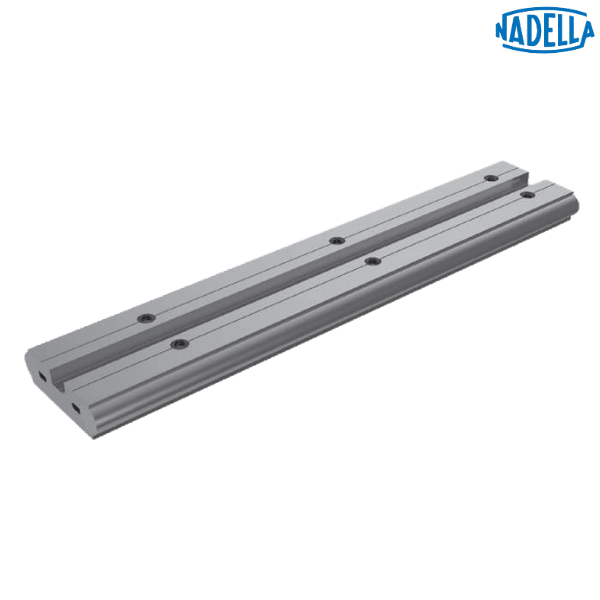

Category - Guide Rail composed by an Aluminium Body and Two Shafts in Steel, with Two Raceways.

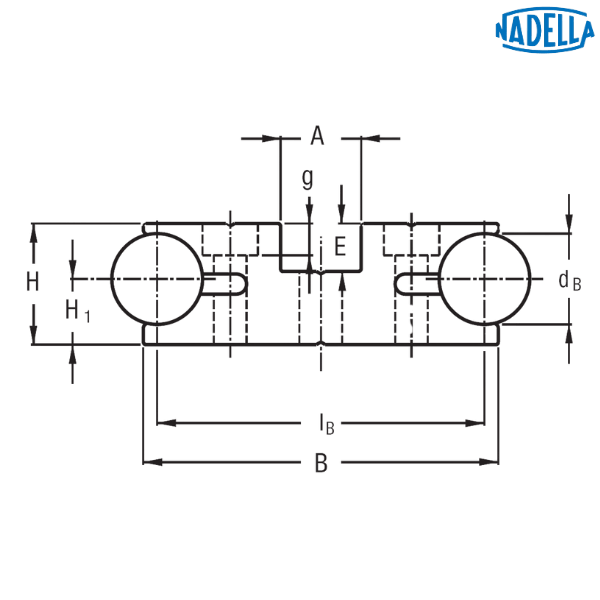

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 10 mm
Dimension (IB) - 54 mm
Dimension (B) - 57 mm
Dimension (H) - 19.5 mm
Dimension (H1) - 13 mm
Dimension (A) - 25 mm
Dimension (E) - 10.5 mm
Dimension (D) - 4.4 mm
Dimension (G) - 8 mm
Dimension (g) - 4.2 mm
Dimension (F) - 36 mm
Dimension (l) - 150 mm
Dimension (l1) - 30 mm
Moments of Inertia** (Jx) - 2.16 cm⁴
Moments of Inertia** (Jy) - 20.5 cm⁴
Weight - 3.15 kg/m

Description of Suffixes and Prefixes:
DC - Rail composed by an aluminium body and two shafts in steel, with two raceways for Base-Line system
D - Felt without lubricant

Other salient points to be noted:
* Available with stainless steel shafts
** Inertia value based on equivalent aluminium yield 70000 N/mm²

• Maximum length in single element L = 6000 mm
• Longer rails are supplied in sections with ground butt joints and, on request, with pin connection

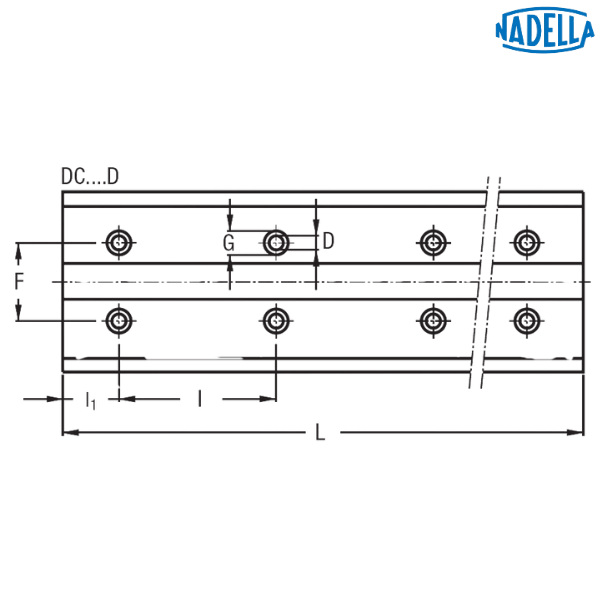

Hole Layout:
• Holes according to catalogue (S or D)
• Finishes to drawing (NZ)
• Without holes (NF)

Optional Features:
• For Ground one end: side of the first hole, Suffix will be 1R, e.g. DC 25.95 S 2010 1R, for side of the last hole, Suffix will be 2R, e.g. DC 25.95 S 2010 2R
• For Ground both ends, Suffix will be RR, e.g. DC 25.95 S 2010 RR
• For Stainless steel shafts, suffix will be NX, e.g. DC 25.95 S 2010 NX
• For Chromium plated shafts, Suffix will be CH, e.g. DC 25.95 S 2010 CH
• For Pin based shaft connection, Suffix will be G, e.g. DC 25.95 S 2010 G

Standard Designation Examples:
DC 25.95 S 650
DC 25.95 S 2010
DC 25.95 S 3450
DC 25.95 S 4600
DC 25.95 S 5630

♦ ♦ Images are for representation purposes only
