Description
Brand - ZEN
Item Number - CYR-3/4-S ZEN
Category - Yoke Type Track Rollers (CYR)
Outer Diameter (RD) inch - 0.75
W (inch) - 0.5
B (inch) - 0.25
W1 (inch) - 0.5625
E (inch) - 0.609375
H (inch) - 0.09375
Static Load Rating (C) N - 4130
Dynamic Load Rating (C) lbs - 1660
Approximate Weight (kg) - 0.03
Alternative Part Number in TORRINGTON - YCRS-12
Alternative Part Number in RBC - Y-24-L
Alternative Part Number in SMITH - YR-3/4X
Alternative Part Number in INA - RF-12-PP

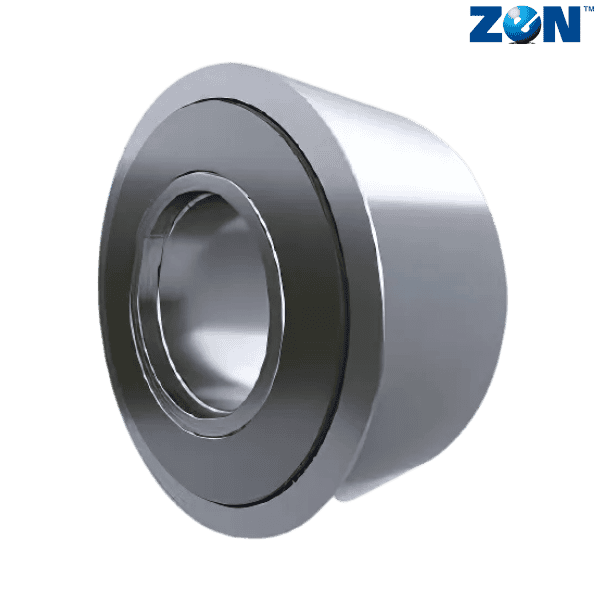

** Images are for representation purposes only
