Description
Brand - ZEN
Item Number - CYR-1-S ZEN
Category - Yoke Type Track Rollers (CYR)
Outer Diameter (RD) inch - 1
W (inch) - 0.625
B (inch) - 0.3125
W1 (inch) - 0.6875
E (inch) - 0.78125
H (inch) - 0.09375
Static Load Rating (C) N - 6120
Dynamic Load Rating (C) lbs - 2225
Approximate Weight (kg) - 0.07
Alternative Part Number in TORRINGTON - YCRS-16
Alternative Part Number in RBC - Y-32-L
Alternative Part Number in SMITH - YR-1X
Alternative Part Number in INA - RF-16-PP

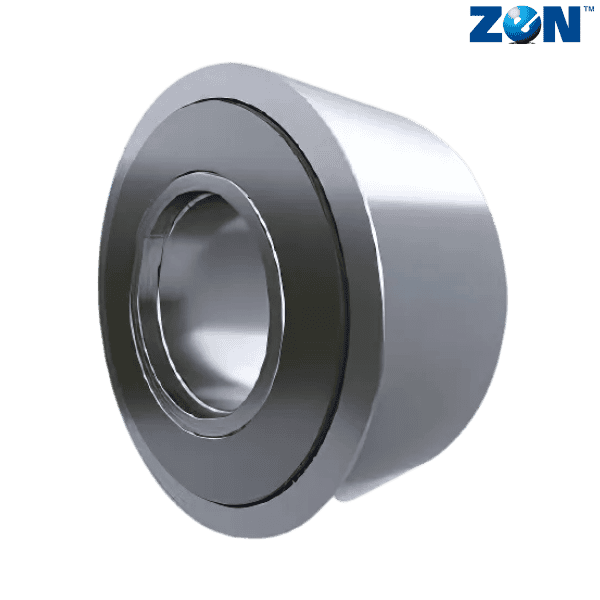

** Images are for representation purposes only
