CTMD8 RBC SPHERCO

Brand - RBC SPHERCO
Item Number - CTMD8 RBC SPHERCO
Category - Rod Ends (Commercial Series, Light Duty, Self Lubricating)

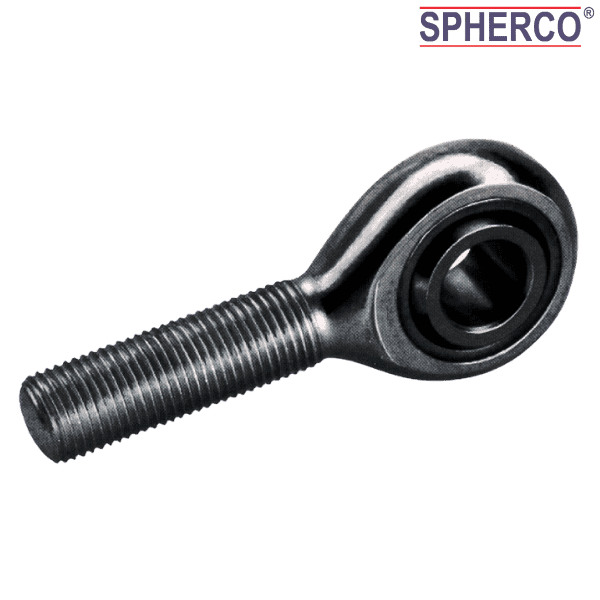

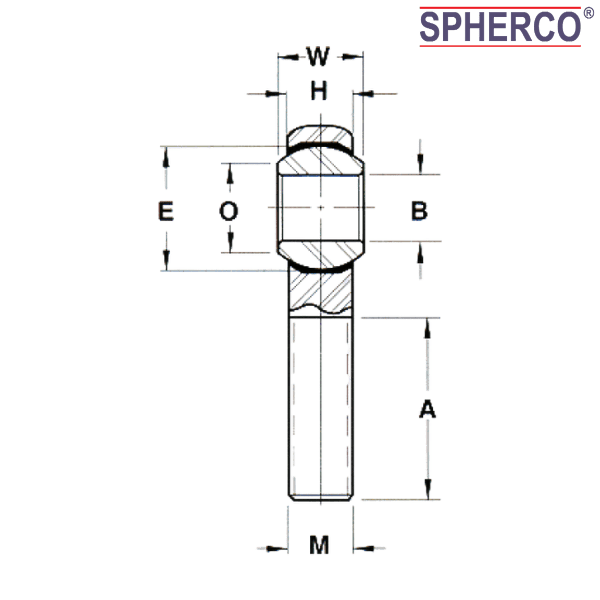

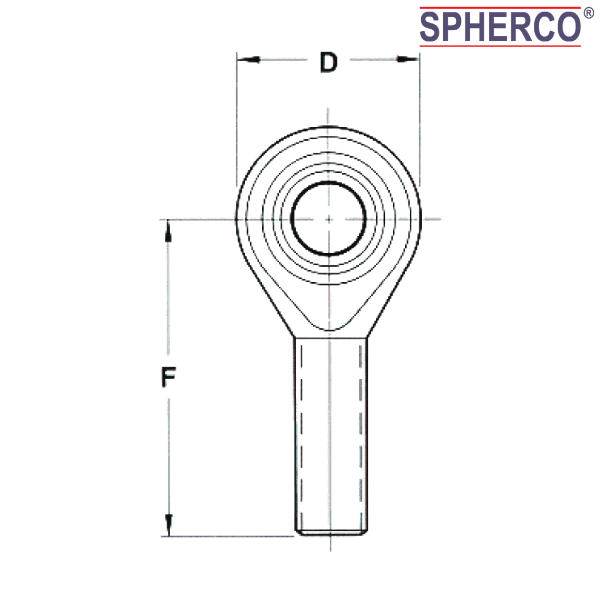

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.5 (+0.0025 to 0.0005) inch
Ball Width (W) - 0.625 (+0.005 to -0.005) inch
Housing Width (H) - 0.5 (+0.010 to -0.010) inch
Head Diameter (D) - 1.312 inch
Length to Center of Ball (F) - 2.438 inch
Thread Length (A) - 1.5 (+0.062 to -0.062) inch
Thread Size, UNF-3A (M) - 0.5000-20
Ball Diameter (E) - 0.937 inch
Ball Flat Diameter (O) - 0.698 inch
Static Radial Load - 3425 lbf
Approximate Weight - 0.26 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.1179 kg

Other salient points to be noted :
• Outer Member: Carbon Steel, with protective coating for corrosion resistance
• Ball: Carbon Steel, case hardened, with protective coating for additional hardness and corrosion resistance
• Race: Engineered Thermoplastic
• Add letter ''L'' to prefix to indicate Left Hand thread, Example: CTMDL4

♦ ♦ Images are for representation purposes only
