Description
Brand - ZEN
Item Number - CSK40-2RS ZEN
Category - One-Way Clutch Bearings
Alternative Part Number (Cross Reference) - BB40-2GD
Also Known As - CS40-2RS
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (L) mm - 27
Dynamic Load Rating (N) - 15540
Static Load Rating (N) - 12250
Torque (Nm) - 10
TKM (Nm) - 260
Weight (kg) - 0.6
Stopper Block Material - AISI52100
Spring Material - 65Mn
Cage Material - PA66
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

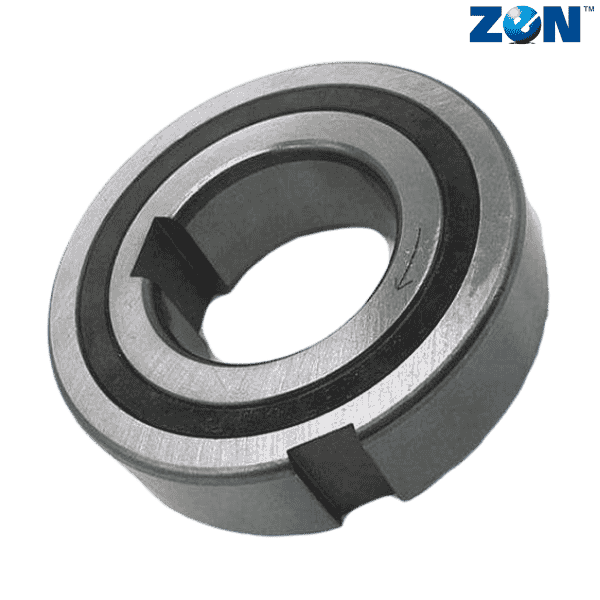

** Images are for representation purposes only
