Description
Brand - ZEN
Item Number - CSK35-P ZEN
Category - One-Way Clutch Bearings
Also Known As - CS35-P
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (L) mm - 17
Dynamic Load Rating (N) - 12600
Static Load Rating (N) - 7280
Torque (Nm) - 5.8
TKM (Nm) - 140
Weight (kg) - 0.3
Stopper Block Material - AISI52100
Spring Material - 65Mn
Cage Material - PA66
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

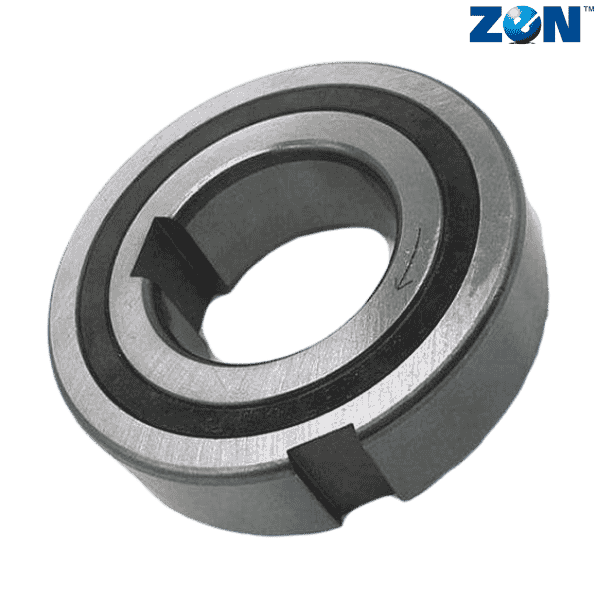

** Images are for representation purposes only
