Description
Brand - ZEN
Item Number - CSK35-2RS ZEN
Category - One-Way Clutch Bearings
Alternative Part Number (Cross Reference) - BB35-2GD
Also Known As - CS35-2RS
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (L) mm - 22
Dynamic Load Rating (N) - 12600
Static Load Rating (N) - 7280
Torque (Nm) - 8.2
TKM (Nm) - 140
Weight (kg) - 0.4
Stopper Block Material - AISI52100
Spring Material - 65Mn
Cage Material - PA66
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

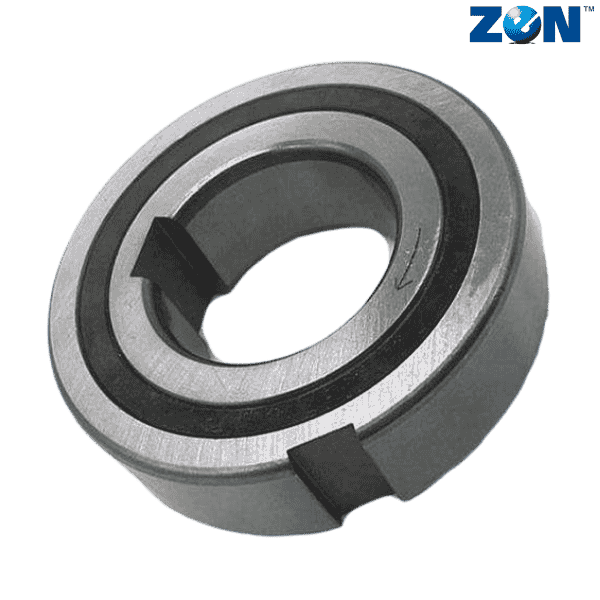

** Images are for representation purposes only
