Description
Brand - ZEN
Item Number - CSK30-P ZEN
Category - One-Way Clutch Bearings
Also Known As - CS30-P
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (L) mm - 15
Dynamic Load Rating (N) - 11700
Static Load Rating (N) - 6450
Torque (Nm) - 4.4
TKM (Nm) - 110
Weight (kg) - 0.21
Stopper Block Material - AISI52100
Spring Material - 65Mn
Cage Material - PA66
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

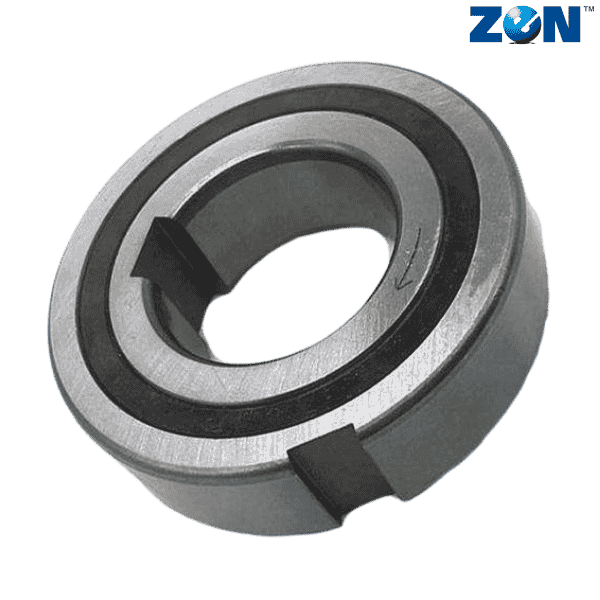

** Images are for representation purposes only
