Description
Brand - ZEN
Item Number - CSK30-2RS ZEN
Category - One-Way Clutch Bearings
Alternative Part Number (Cross Reference) - BB30-2GD
Also Known As - CS30-2RS
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (L) mm - 21
Dynamic Load Rating (N) - 11700
Static Load Rating (N) - 6450
Torque (Nm) - 7.5
TKM (Nm) - 110
Weight (kg) - 0.27
Stopper Block Material - AISI52100
Spring Material - 65Mn
Cage Material - PA66
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

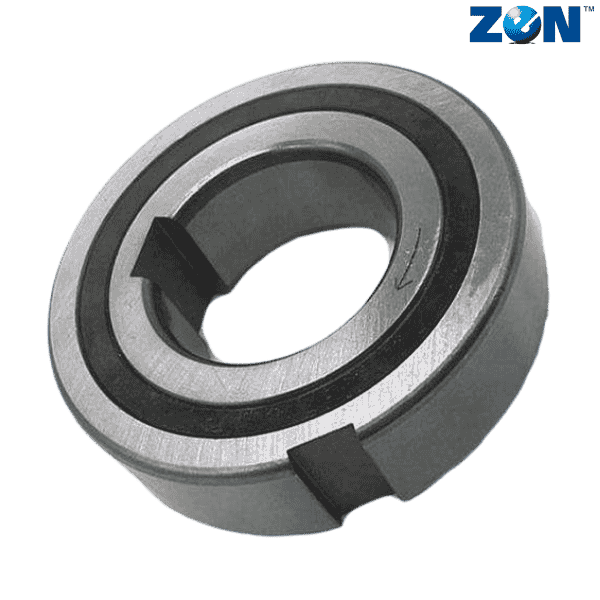

** Images are for representation purposes only
