Description
Brand - ZEN
Item Number - CSK25-2RS ZEN
Category - One-Way Clutch Bearings
Alternative Part Number (Cross Reference) - BB25-2GD
Also Known As - CS25-2RS
Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (L) mm - 20
Dynamic Load Rating (N) - 10700
Static Load Rating (N) - 5460
Torque (Nm) - 6
TKM (Nm) - 68
Weight (kg) - 0.175
Stopper Block Material - AISI52100
Spring Material - 65Mn
Cage Material - PA66
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

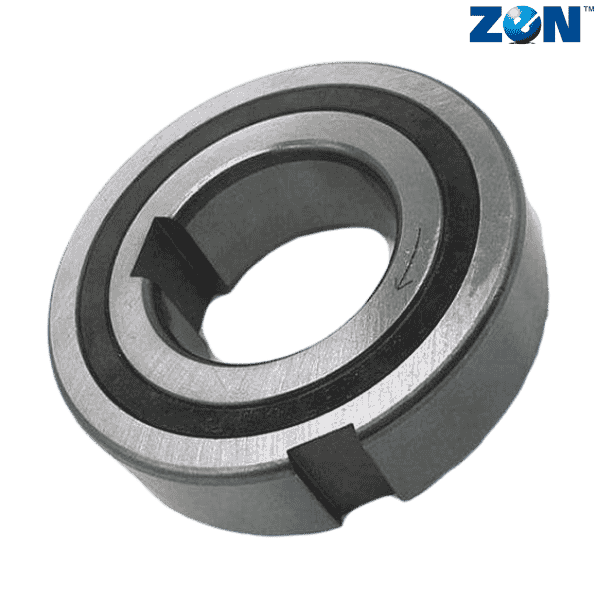

** Images are for representation purposes only
