Description
Brand - ZEN
Item Number - CSK20-2RS ZEN
Category - One-Way Clutch Bearings
Alternative Part Number (Cross Reference) - BB20-2GD
Also Known As - CS20-2RS
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (L) mm - 19
Dynamic Load Rating (N) - 9400
Static Load Rating (N) - 4460
Torque (Nm) - 6
TKM (Nm) - 40
Weight (kg) - 0.145
Stopper Block Material - AISI52100
Spring Material - 65Mn
Cage Material - PA66
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

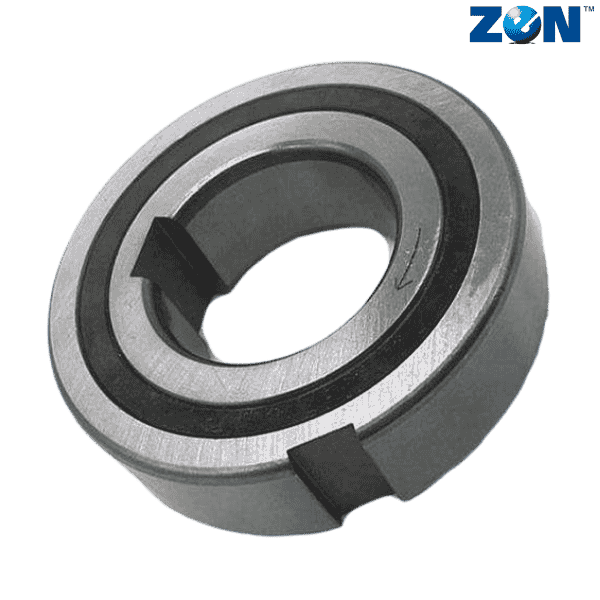

** Images are for representation purposes only
