Description
Brand - ZEN
Item Number - CS210 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726210-2RS
Inner Diameter (d) mm - 50
D2 (mm) - 90
Width (B) mm - 20
Minimum r (mm) - 1.1
Dynamic Load Rating (N) - 35000
Static Load Rating (N) - 23200
Limiting Speed - 5500
Weight (kg) - 0.46
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

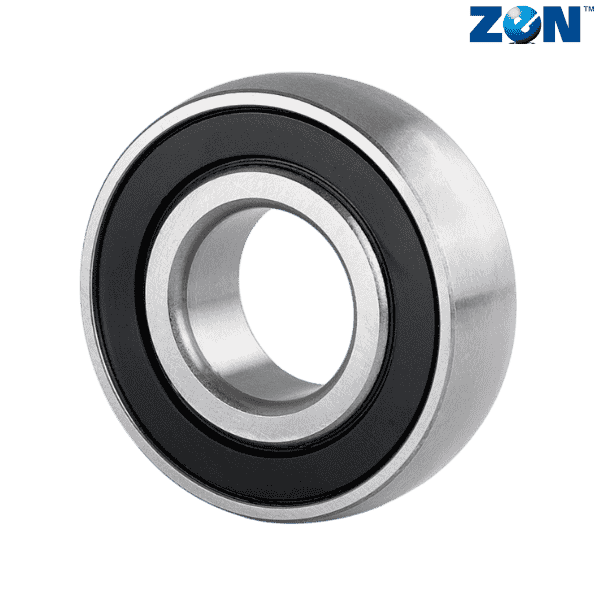

** Images are for representation purposes only
