Description
Brand - ZEN
Item Number - CS209 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726209-2RS
Inner Diameter (d) mm - 45
D2 (mm) - 85
Width (B) mm - 19
Minimum r (mm) - 1.1
Dynamic Load Rating (N) - 31500
Static Load Rating (N) - 20800
Limiting Speed - 5900
Weight (kg) - 0.43
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

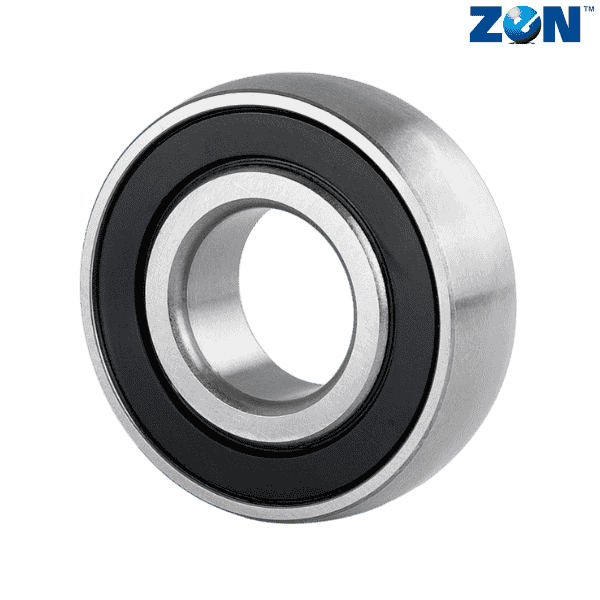

** Images are for representation purposes only
