Description
Brand - ZEN
Item Number - CS208 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726208-2RS
Inner Diameter (d) mm - 40
D2 (mm) - 80
Width (B) mm - 18
Minimum r (mm) - 1.1
Dynamic Load Rating (N) - 29500
Static Load Rating (N) - 18000
Limiting Speed - 6300
Weight (kg) - 0.37
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

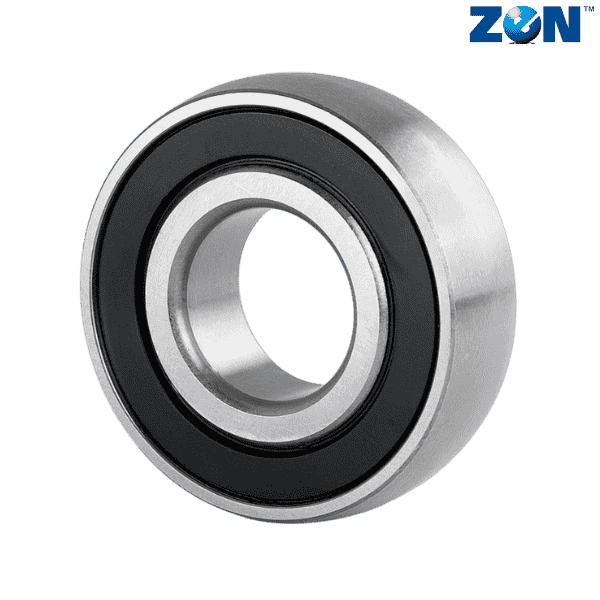

** Images are for representation purposes only
