Description
Brand - ZEN
Item Number - CS207 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726207-2RS
Inner Diameter (d) mm - 35
D2 (mm) - 72
Width (B) mm - 17
Minimum r (mm) - 1.1
Dynamic Load Rating (N) - 25500
Static Load Rating (N) - 15200
Limiting Speed - 7100
Weight (kg) - 0.3
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

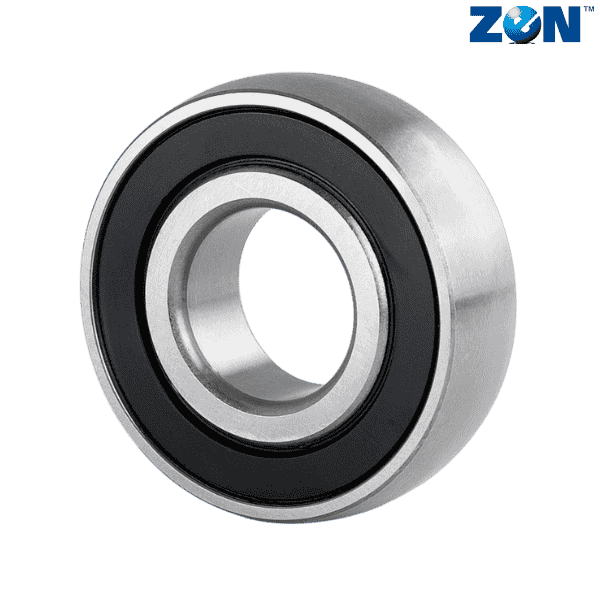

** Images are for representation purposes only
