Description
Brand - ZEN
Item Number - CS206 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726206-2RS
Inner Diameter (d) mm - 30
D2 (mm) - 62
Width (B) mm - 16
Minimum r (mm) - 1
Dynamic Load Rating (N) - 19500
Static Load Rating (N) - 11500
Limiting Speed - 8200
Weight (kg) - 0.2
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

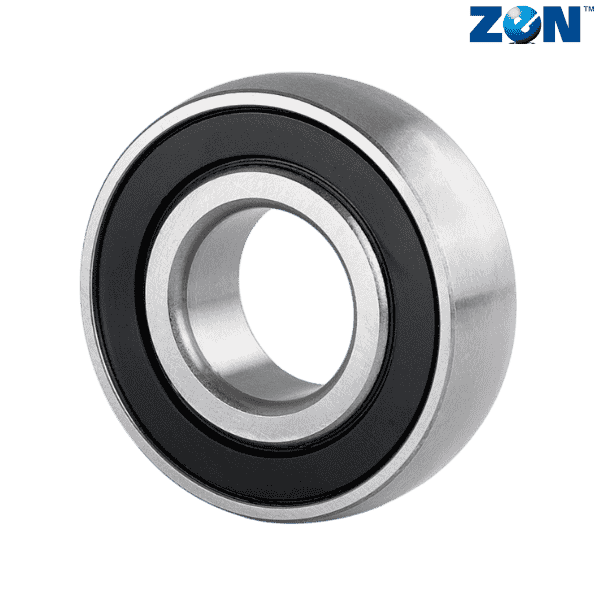

** Images are for representation purposes only
