Description
Brand - ZEN
Item Number - CS205 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726205-2RS
Inner Diameter (d) mm - 25
D2 (mm) - 52
Width (B) mm - 15
Minimum r (mm) - 1
Dynamic Load Rating (N) - 14000
Static Load Rating (N) - 7880
Limiting Speed - 9800
Weight (kg) - 0.18
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

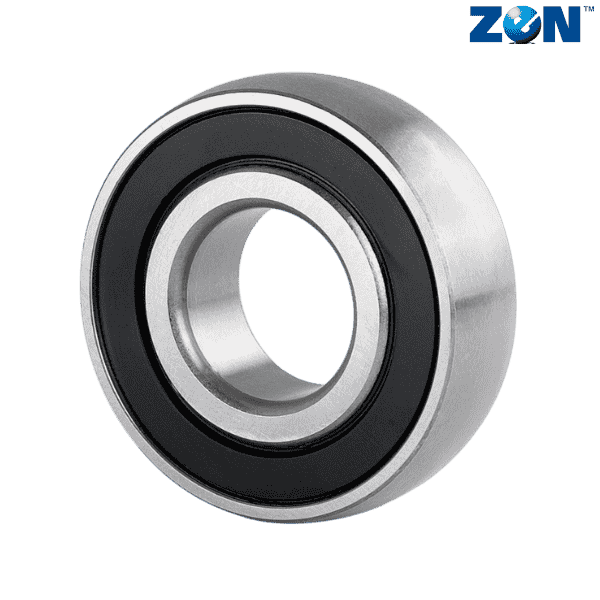

** Images are for representation purposes only
