Description
Brand - ZEN
Item Number - CS204 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726204-2RS
Inner Diameter (d) mm - 20
D2 (mm) - 47
Width (B) mm - 14
Minimum r (mm) - 1
Dynamic Load Rating (N) - 12800
Static Load Rating (N) - 6650
Limiting Speed - 14000
Weight (kg) - 0.11
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

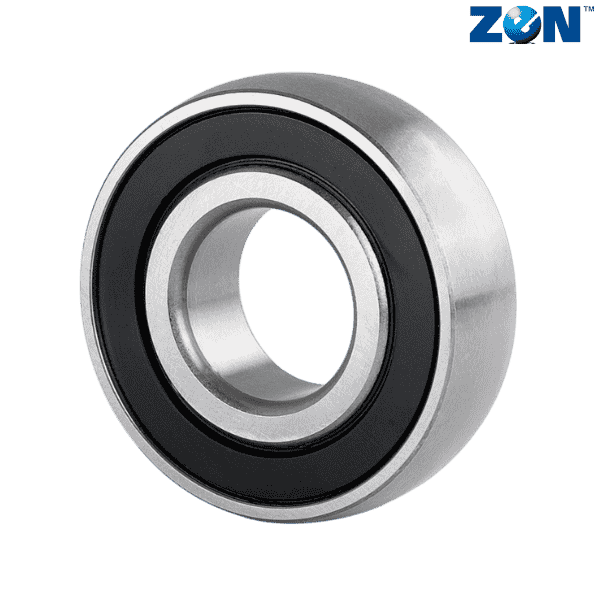

** Images are for representation purposes only
