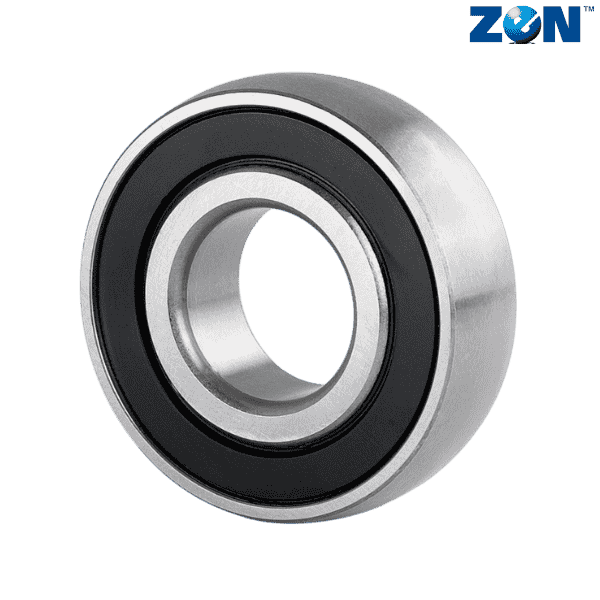

Description
Brand - ZEN
Item Number - CS202 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726202-2RS
Inner Diameter (d) mm - 15
D2 (mm) - 35
Width (B) mm - 11
Minimum r (mm) - 0.6
Dynamic Load Rating (N) - 7650
Static Load Rating (N) - 3720
Limiting Speed - 15000
Weight (kg) - 0.05
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
