Description
Brand - ZEN
Item Number - CS201 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726201-2RS
Inner Diameter (d) mm - 12
D2 (mm) - 32
Width (B) mm - 10
Minimum r (mm) - 0.6
Dynamic Load Rating (N) - 6800
Static Load Rating (N) - 3050
Limiting Speed - 15500
Weight (kg) - 0.039
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

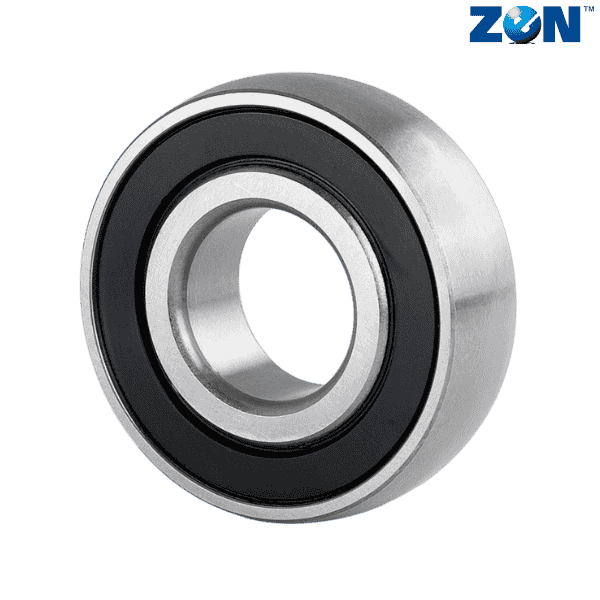

** Images are for representation purposes only
