Description
Brand - ZEN
Item Number - CS200 ZEN
Category - Steel Inserts (CS200)
Alternative Part Number (Cross Reference) - 1726200-2RS
Inner Diameter (d) mm - 10
D2 (mm) - 30
Width (B) mm - 9
Minimum r (mm) - 0.6
Dynamic Load Rating (N) - 6500
Static Load Rating (N) - 2850
Limiting Speed - 16500
Weight (kg) - 0.032
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

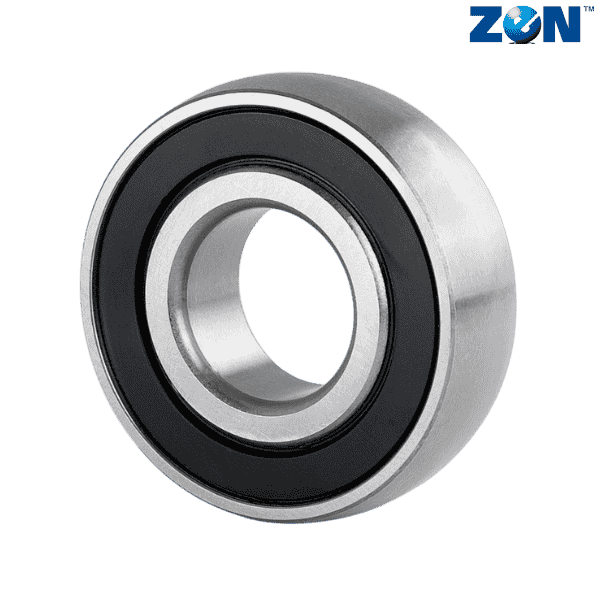

** Images are for representation purposes only
