CS 104 LWX RBC

Brand - RBC
Item Number - CS 104 LWX RBC
Also Known As - CS104LWX Basic Number - (-104)
CamCentric™ Adjustable Cam Followers (Cylindrical Outer Ring) - S 104 LWX
Category - CamCentric™ Adjustable Cam Followers (Crowned Outer Ring)

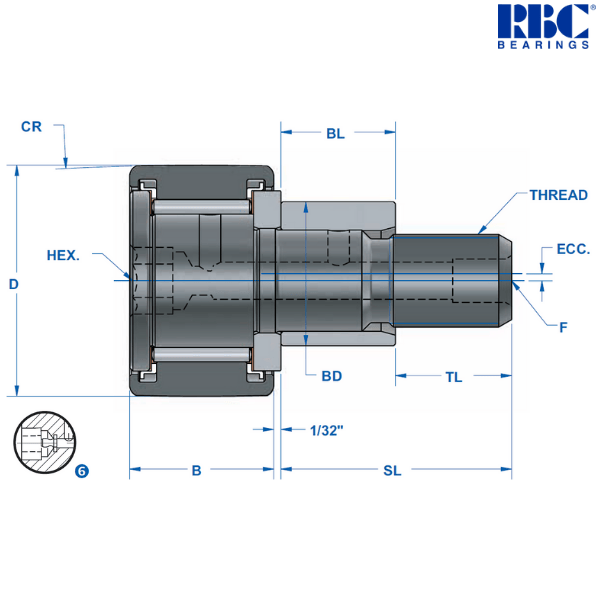

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 3.25 inch
Outside Diameter (D) - 3.25 (+ .000 to - .001) inch
Roller Width (B) - 1.75 (+.000 to - .005) inch
Crown Radius (CR) - 30 inch
BD - 1.75 (+ .000 to - .002) inch
BL - 1.25 (+ .000 to - .010) inch *
Eccentricty (ECC) - 0.06 inch
Shank Length (SL) - 2.5 inch
Eff. Thread Length (TL) - 1.25 inch
Thread Class 2A - 1 1/4-12
Approximate Weight - 5.17 lbs
Lube Fitting (F) - 0.25 inch
Socket Head Wrench Size - 0.625 inch
Speed Limit - 1600 rpm
Dynamic Capacity (C) - 17000 lbf
Static Capacity (C0) - 40000 lbf ***
Maximum Allowable Load - 21000 lbf
Track Capacity @ 40 Rc - 14400 lbf
Maximum Clamping Torque - 2000 in-lbf ****
Hsg. Bore - 1.75 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.345 kg

Replaces (Direct Interchange) :
McGill - CCFE-3 1/4-SB
KOYO - CRSBCE-52

Description of Suffixes and Prefixes :
C - Crowned Outer Ring
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
X - Eccentric Bushing

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• Do not clamp eccentric bushing.
• Eccentric bushing press fitted and not heat treated to permit dowel or set screw engagement.

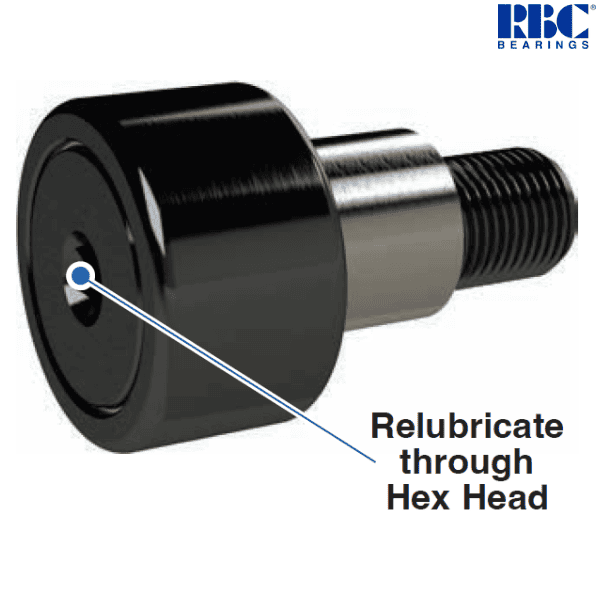

• (6) HexLube ® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* For positive clamping action use a housing thickness tolerance of +0.010/-0.000 inches.
*** Bearing Static Capacity provided for comparison only.
**** Bearing Static Capacity provided for comparison only.

♦ ♦ Images are for representation purposes only
